32-Level Damping Coilover for BMW F20/F21/F22 / F23/F32/F33/F36 2011-2021 & BMW 1 Series/BMW 2 Series/BMW 4 Series 2011-2021 PF086530

Application:

• BMW 1 Series 2nd Gen (5 bolts) F20/F21 11-19
• BMW 2 Series 1st Gen coupe and convertible 2WD/AWD (5 bolts) F22/F23 14-21
• BMW 4 Series 1st Gen 2WD/AWD (5 bolts) F32/F33/F36 13+

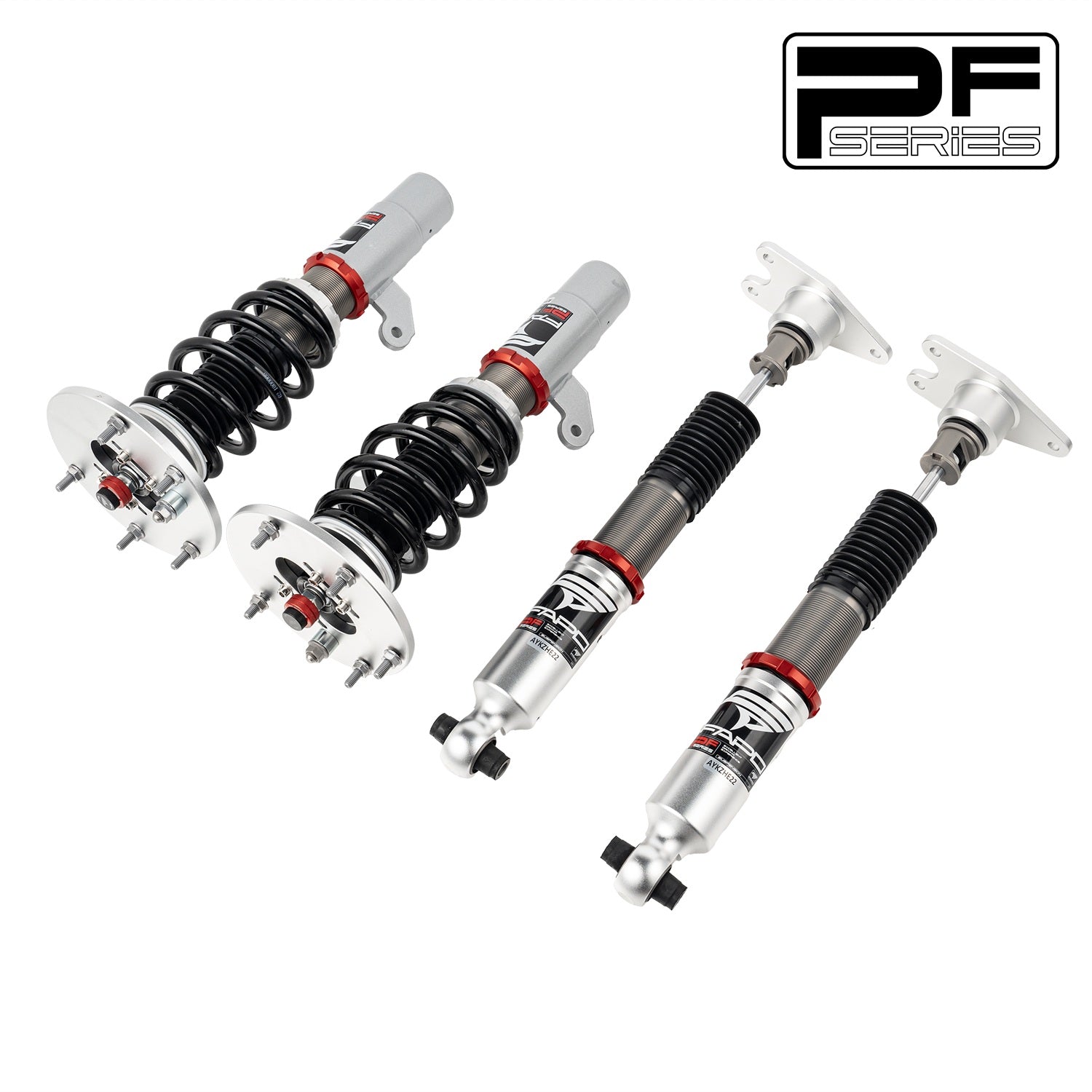

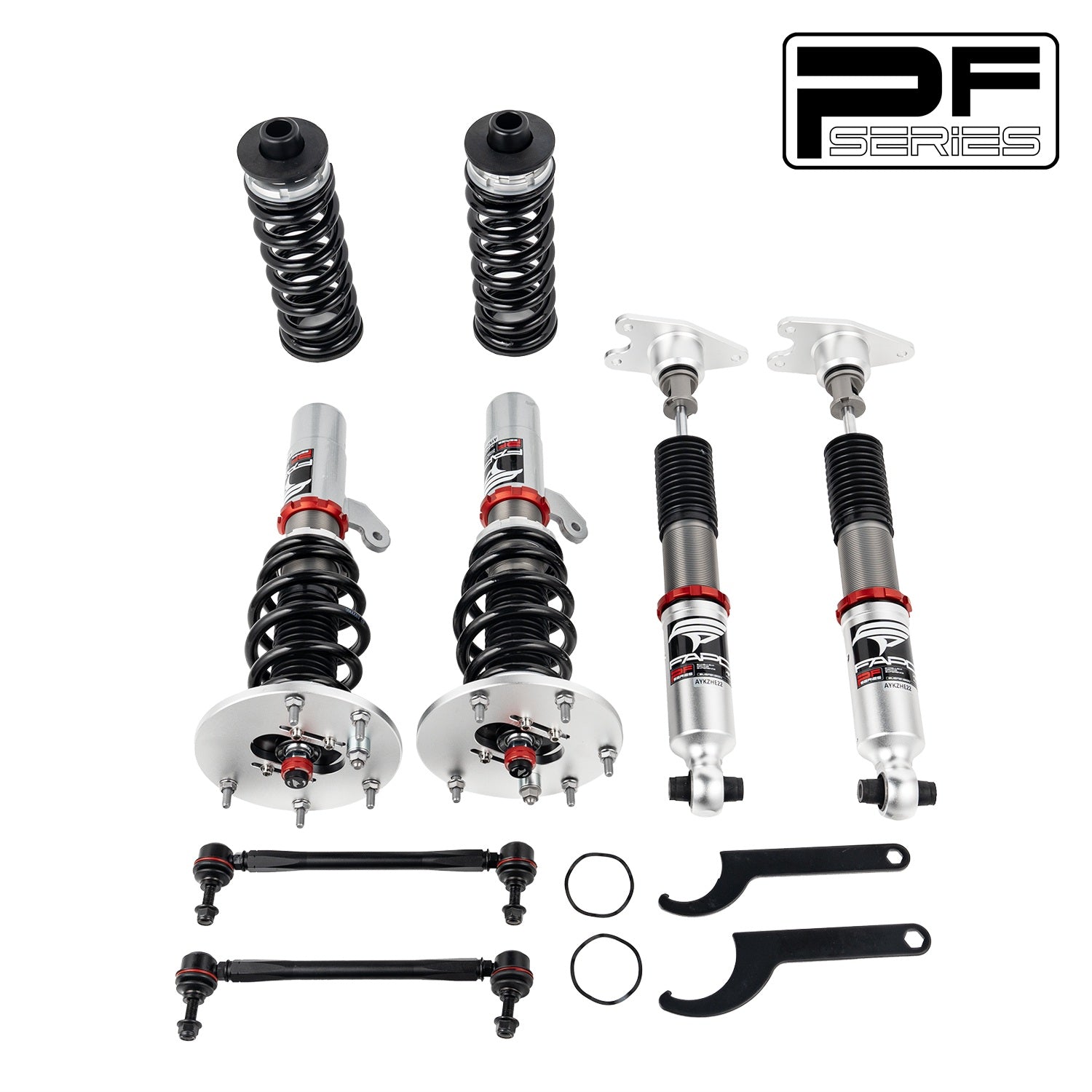

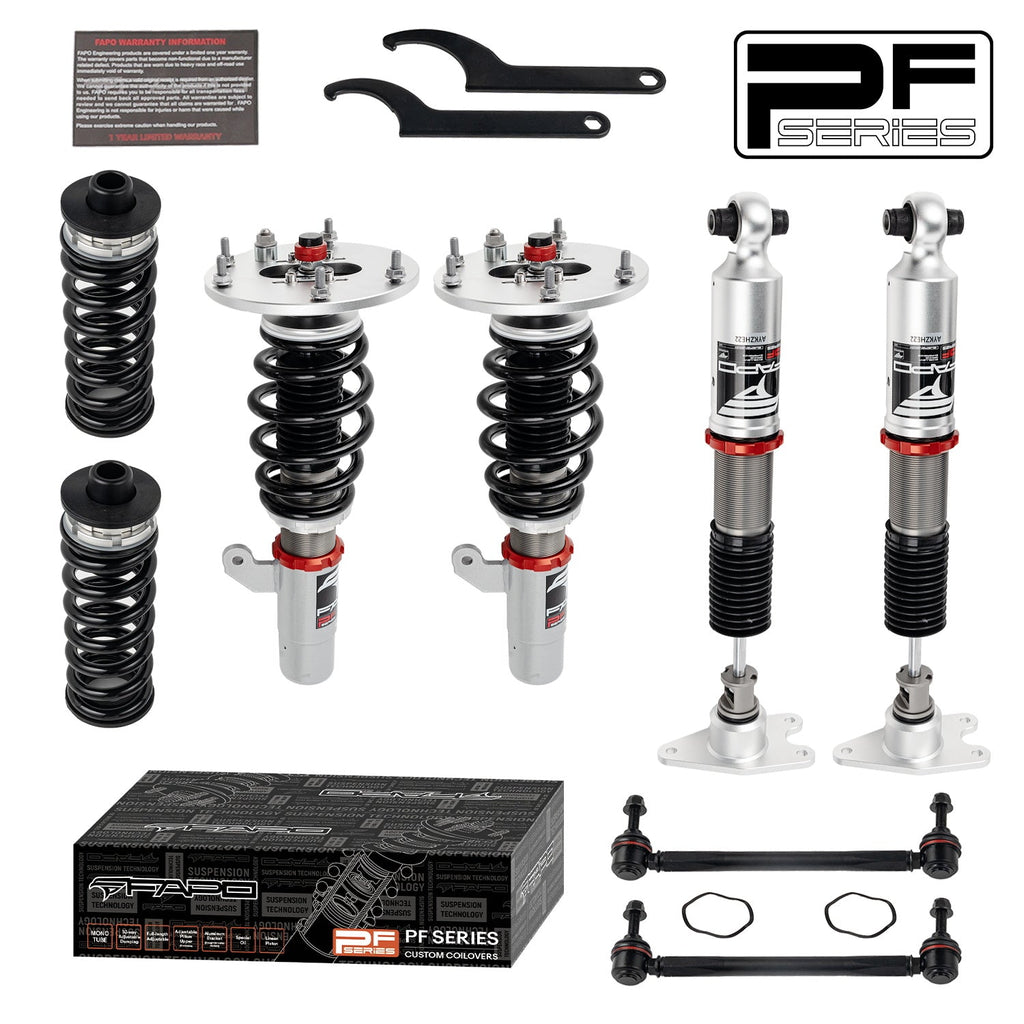

Package Includes:

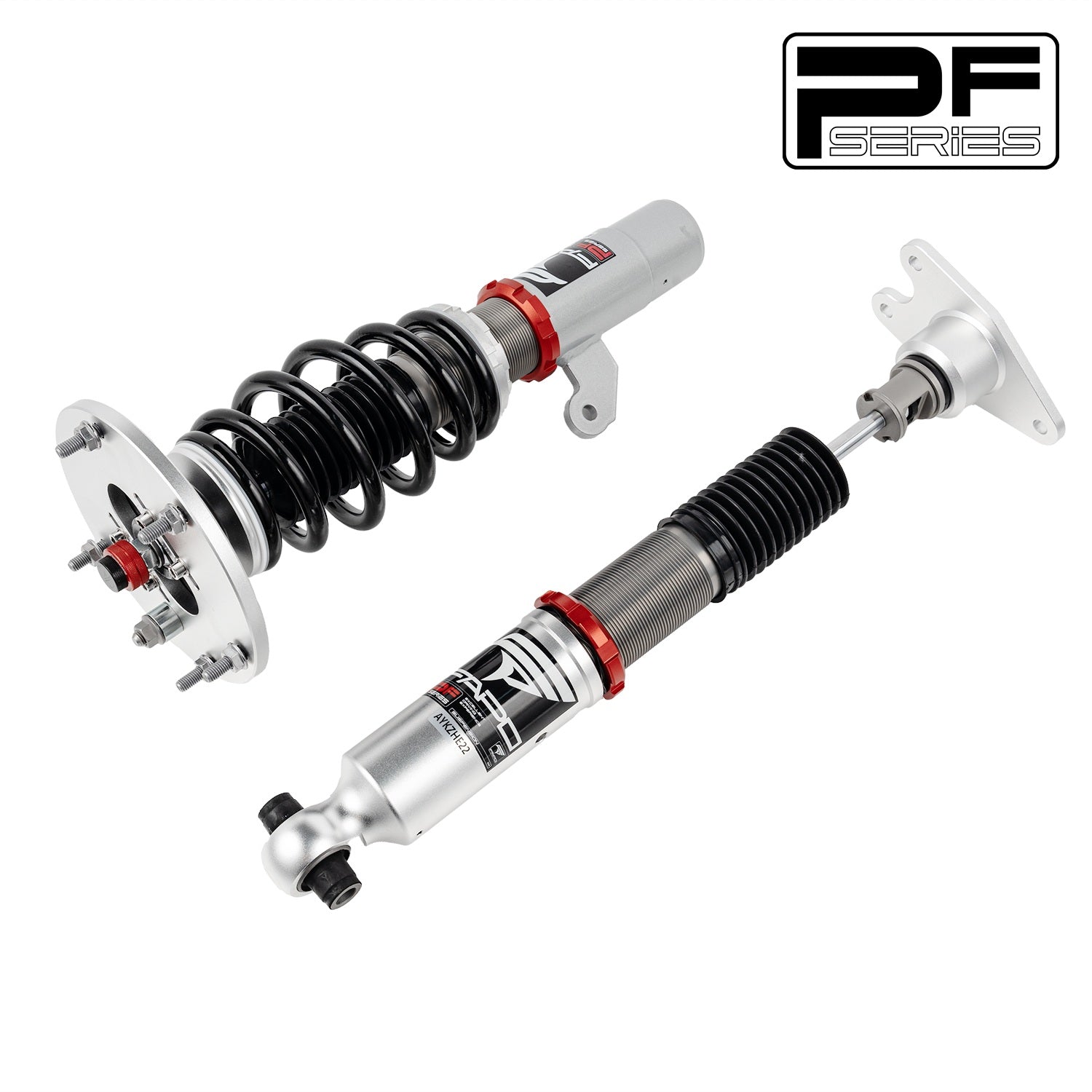

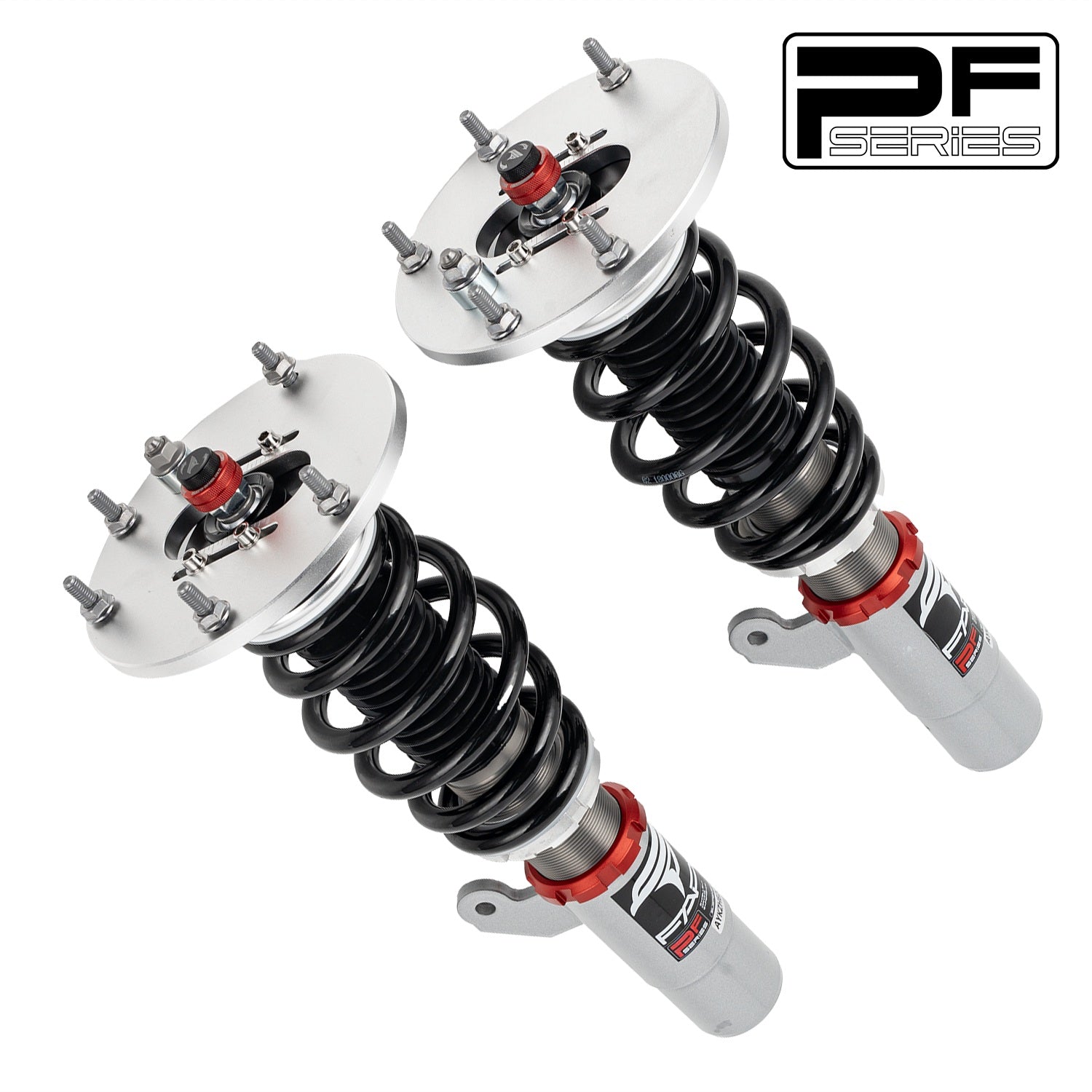

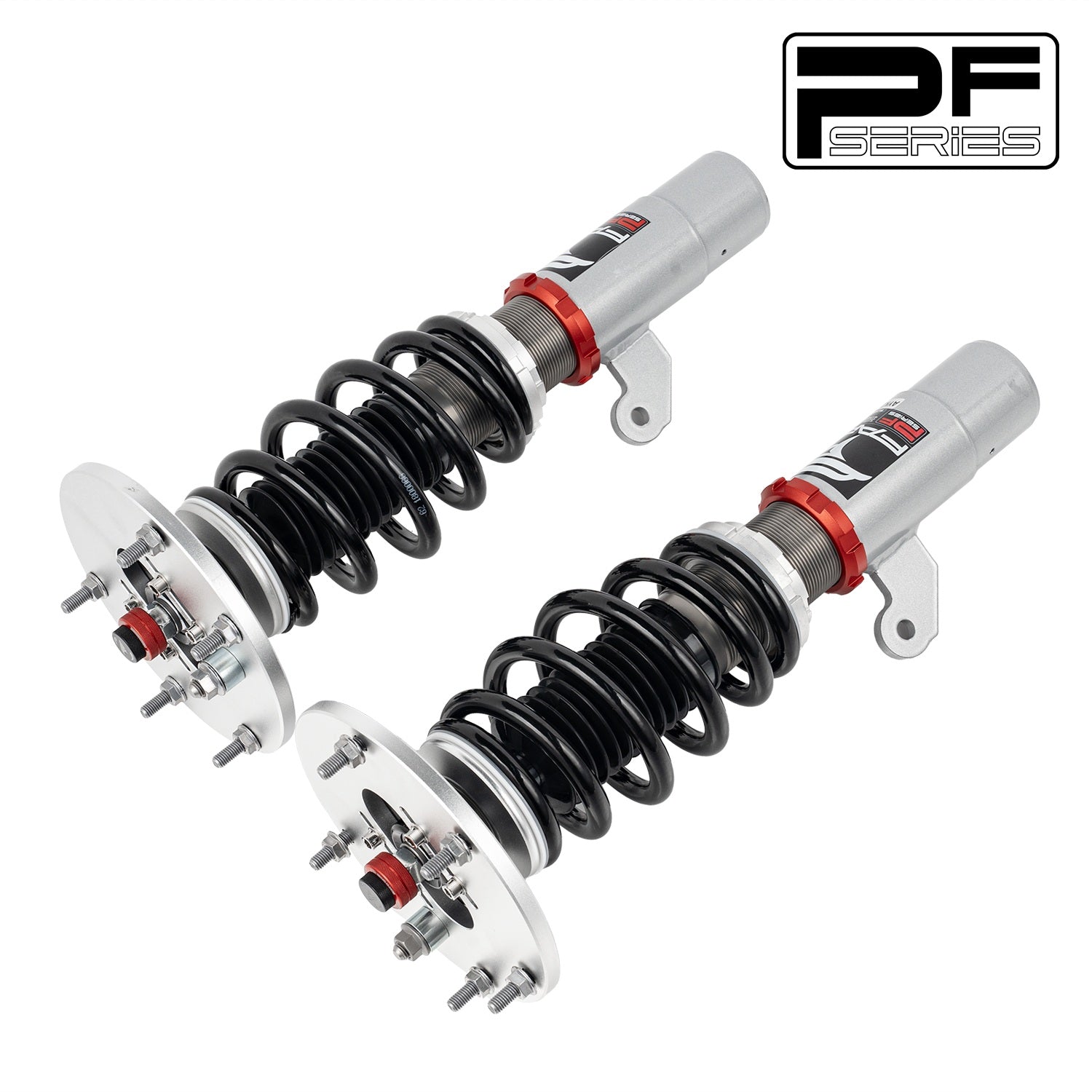

• Front coilovers × 2 pcs

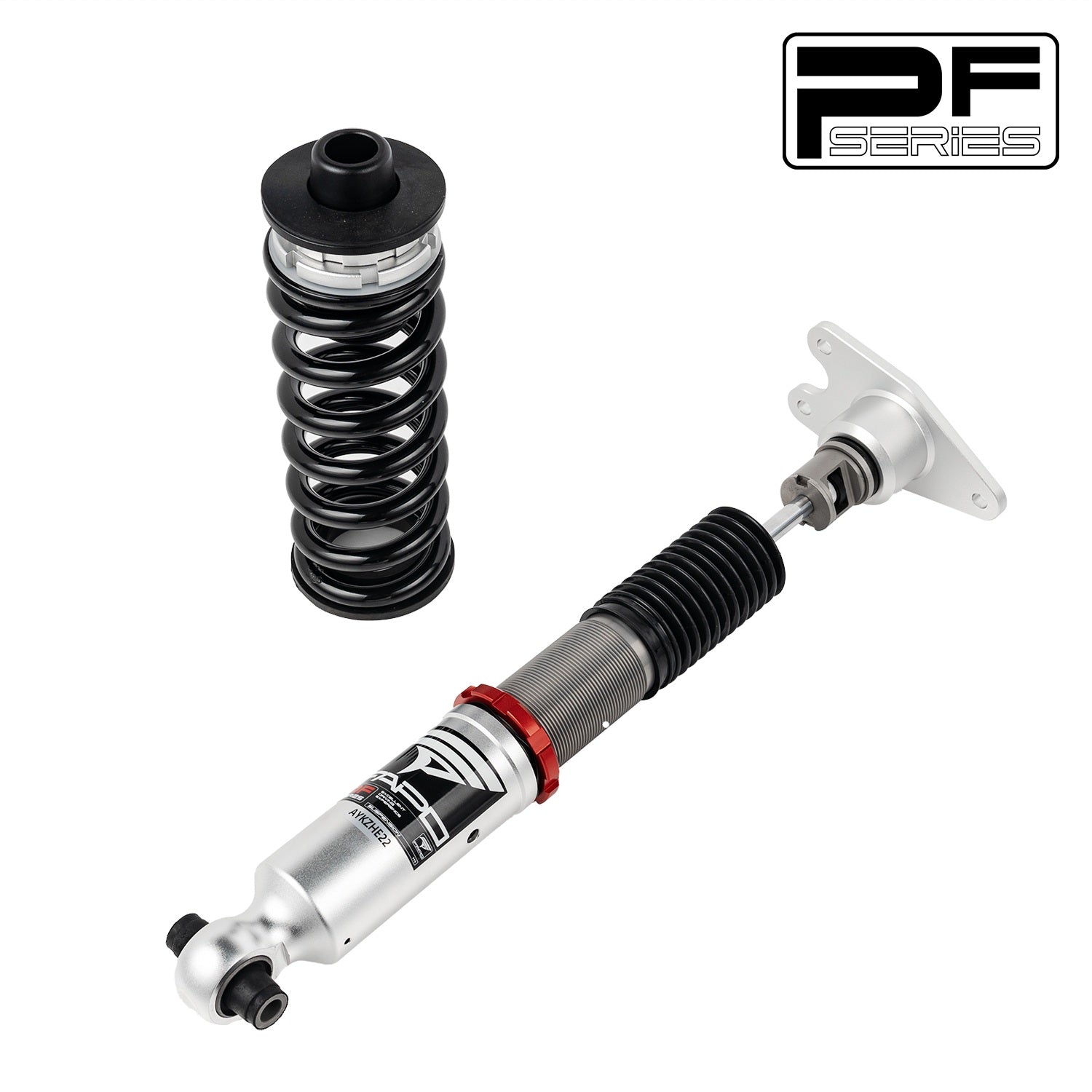

• Rear coilovers × 2 pcs
• Wrench × 2 pcs
• Sway bar link × 2 pcs

* Our coilover is a lowering kit which will be 1-1.5" lower than the factory height even at the max height. Please confirm you want to lower your car before you buy it.

Features:

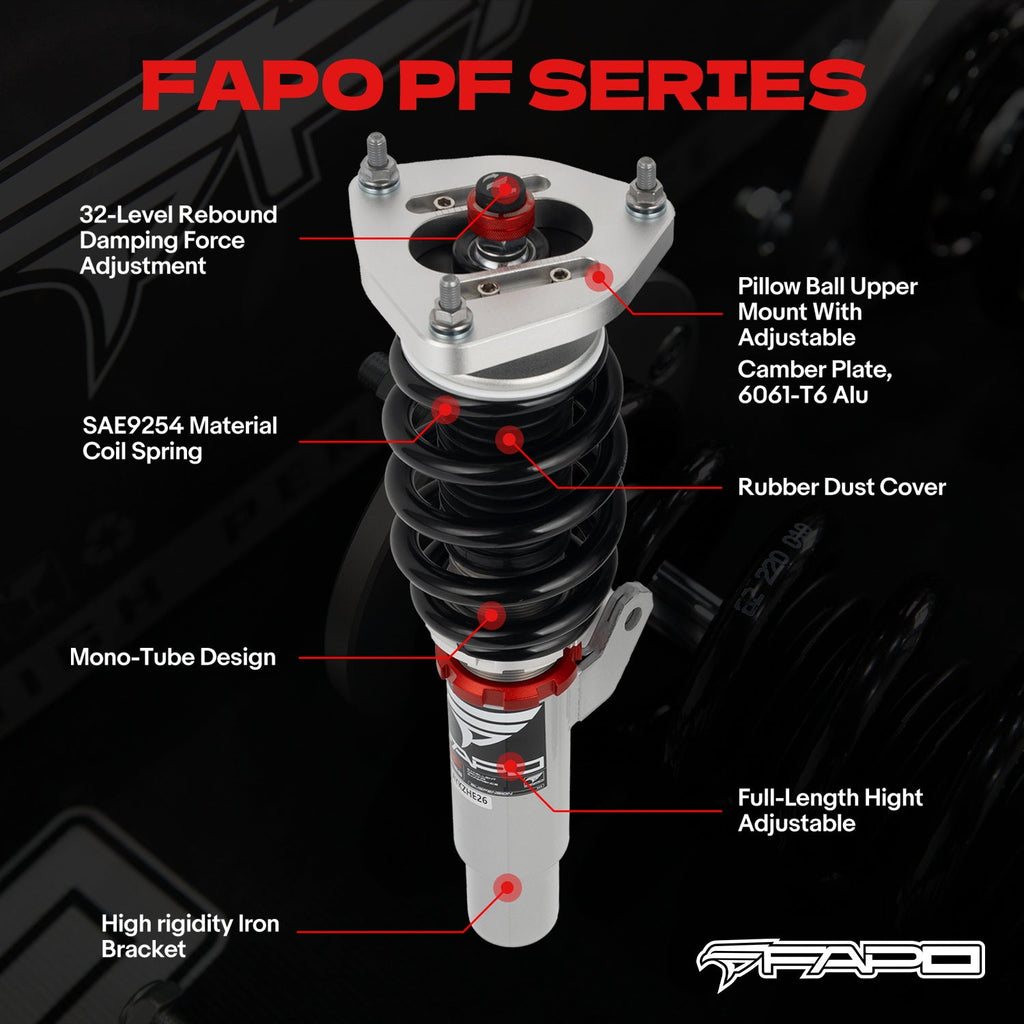

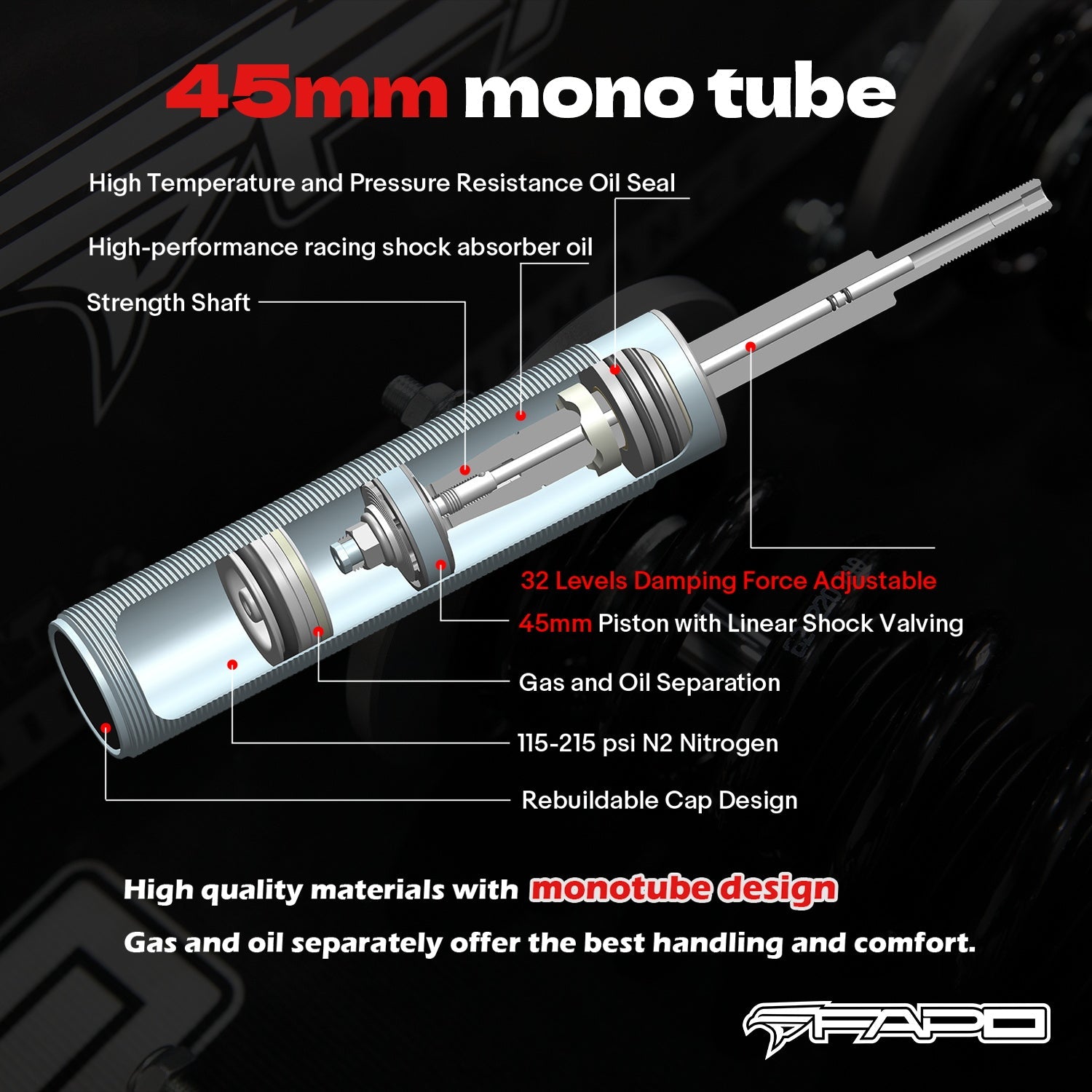

• Mono-tube shock design, provides larger capacity of oil and gas

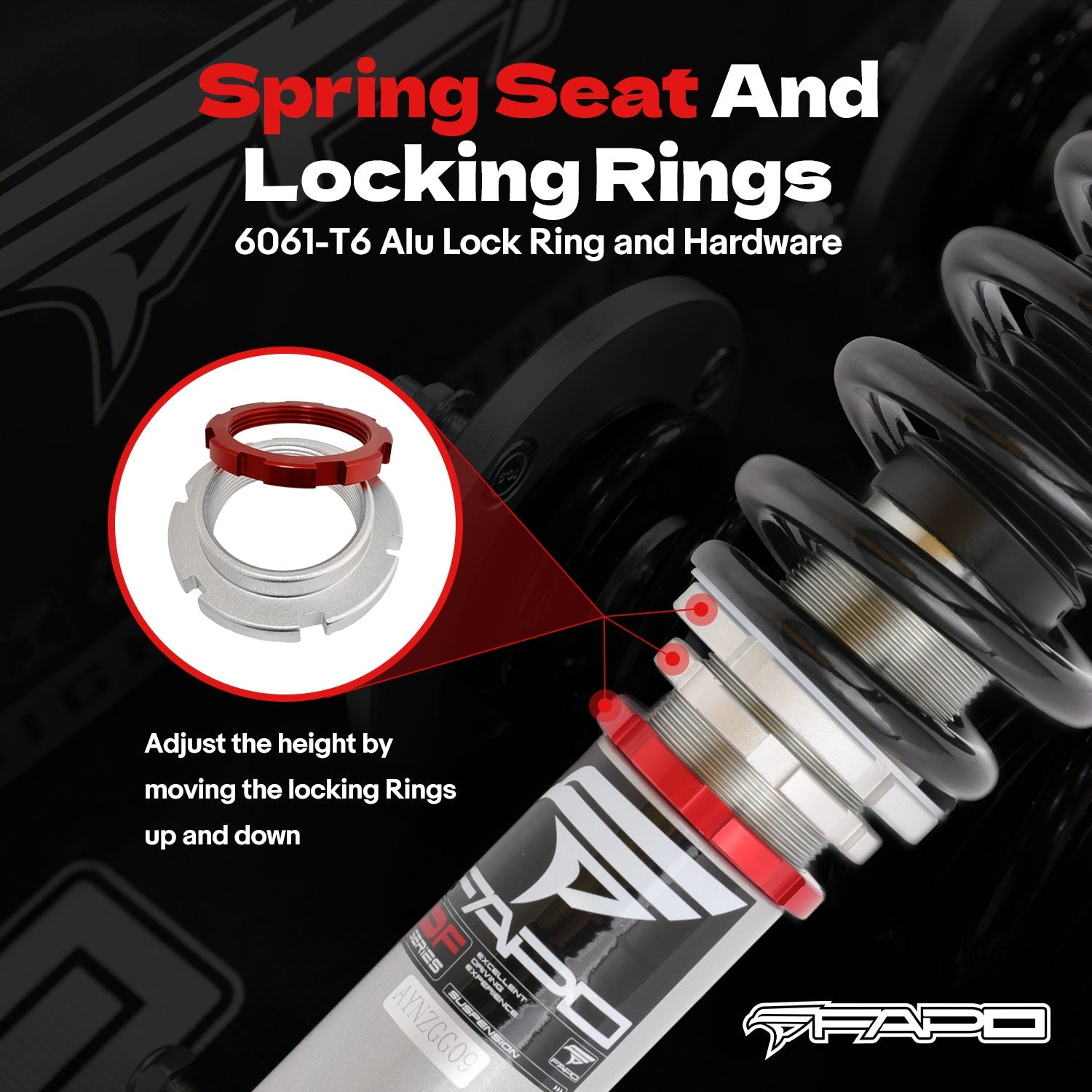

• Adjustable ride height
• Adjustable pre-load spring tension

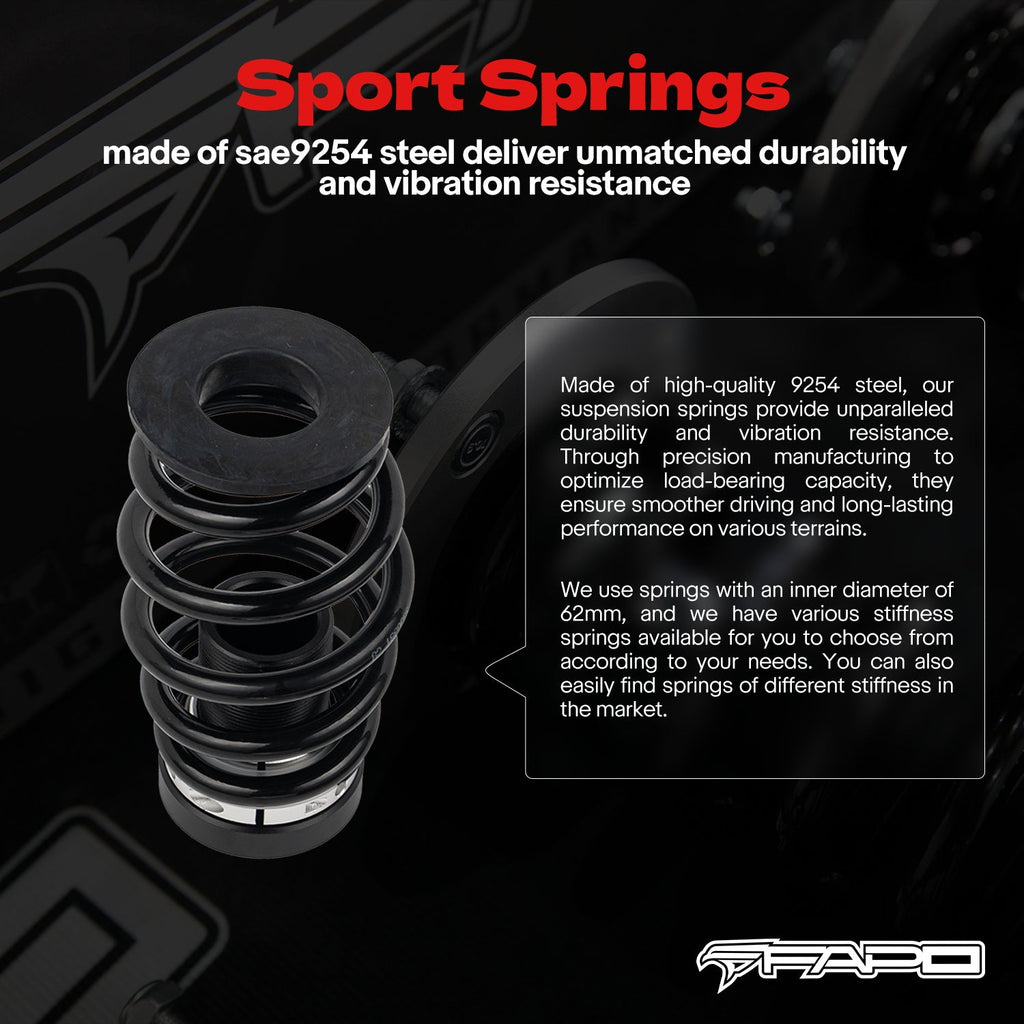

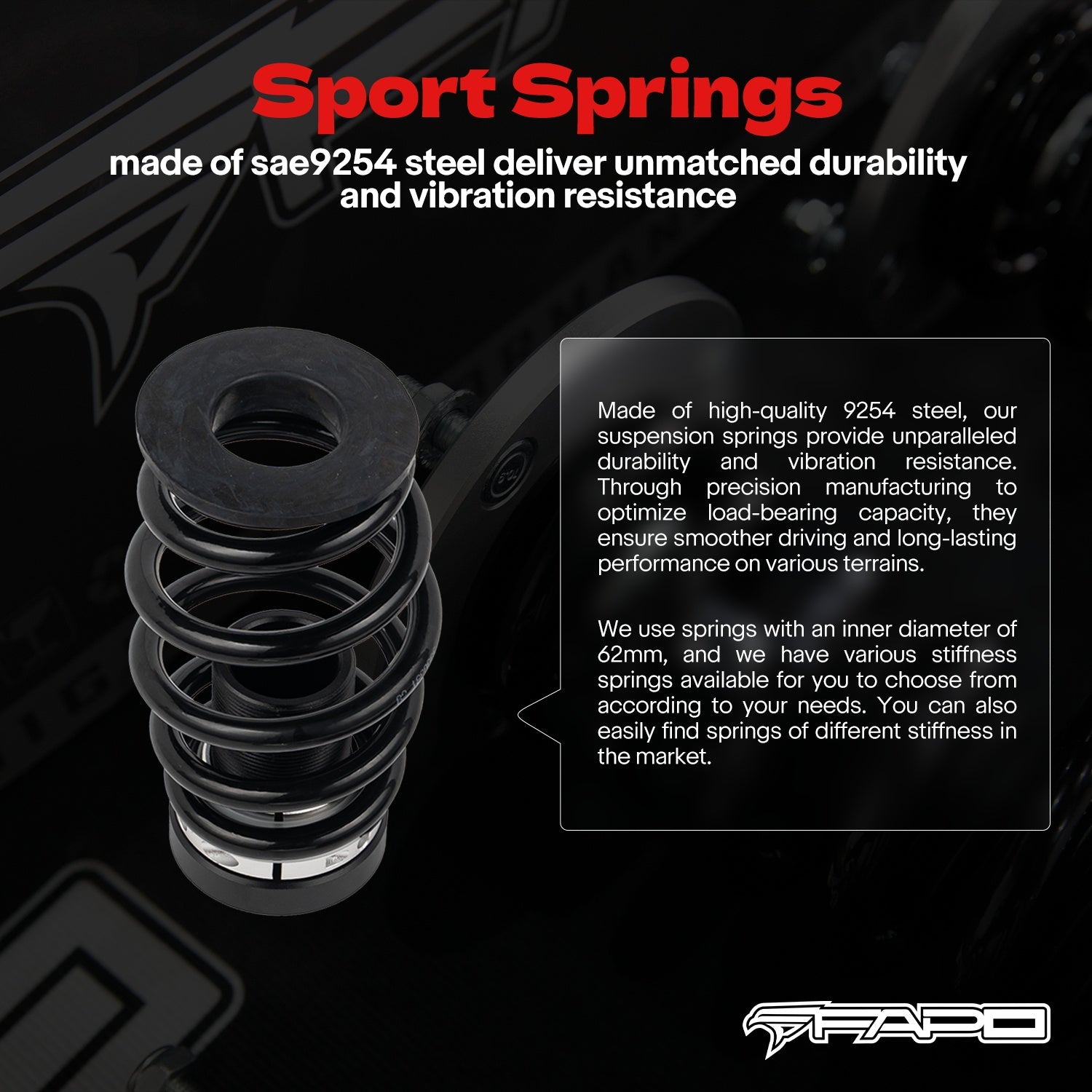

• Hi Tensile performance spring - tested over 600,000 cycles with less than 0.04% distortion. Special surface treatment improves durability and performance.
• All inserts come with fitted rubber boots to protect the damper and keep it clean.
• Improve your handling performance without sacrificing comfortable ride.
• A fast and affordable way to easily upgrade your car's appearance.
• Easy installation with the right tools.
• Ideal for any track, drift, fast road, and daily driving.
• The accessories shown in the photos are included.
• Default 1-year warranty for any manufacturing defect, upgrade to 2 years with our Extended Warranty Program.

Specifications:

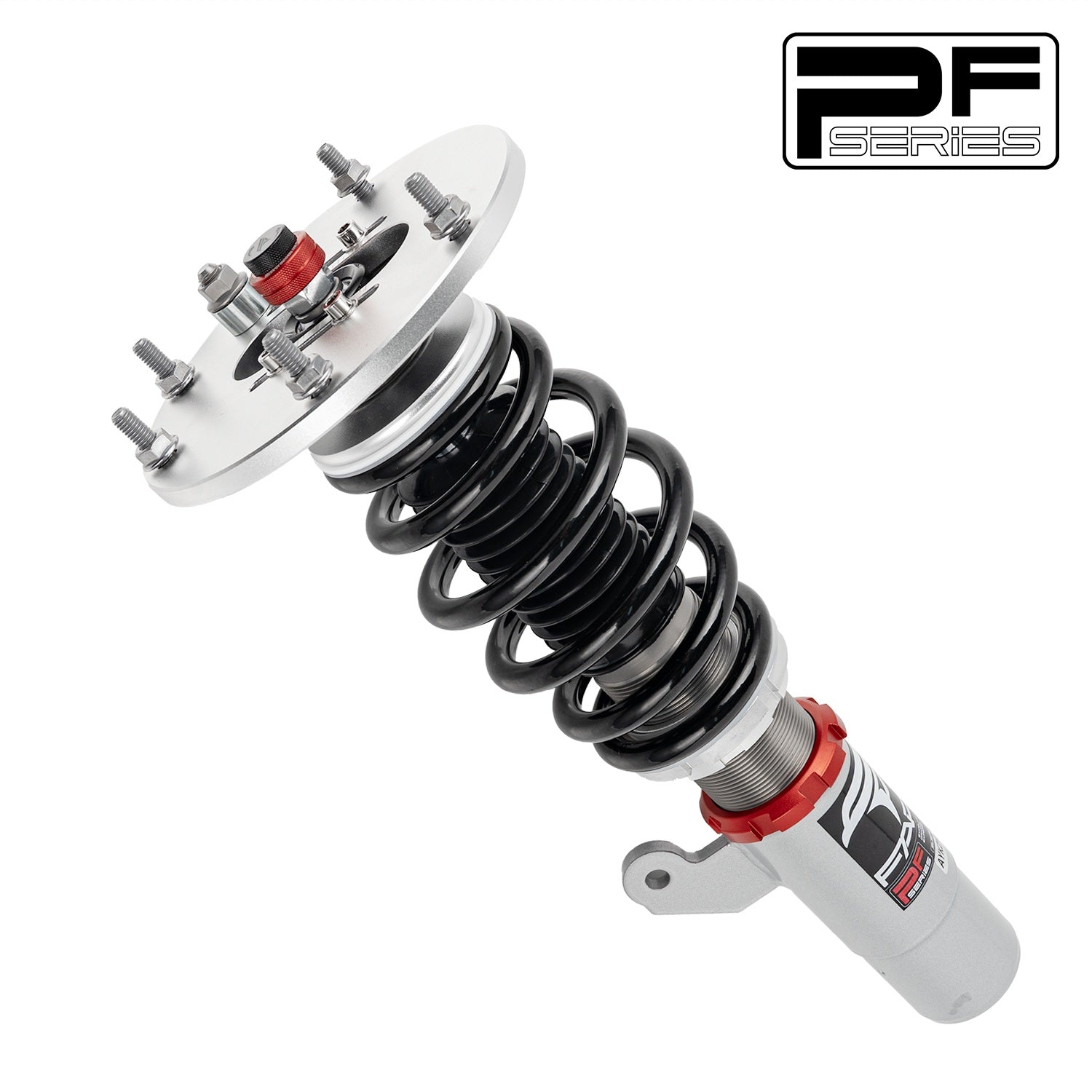

• Front Shock: 53-260-120-20-M12 [4-M2-4]

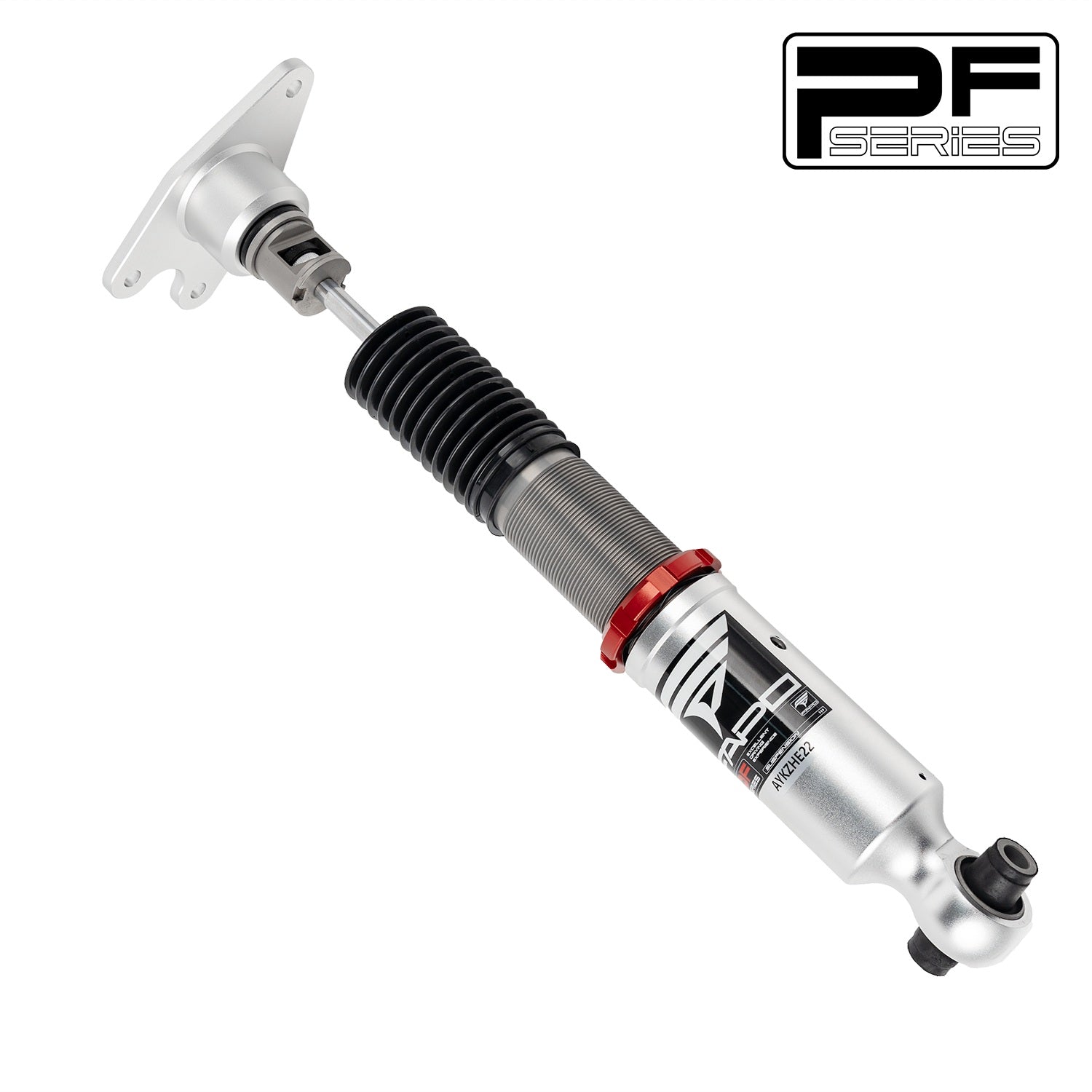

• Rear Shock: 53-240-140-12.5-M12 [4-A1-9]

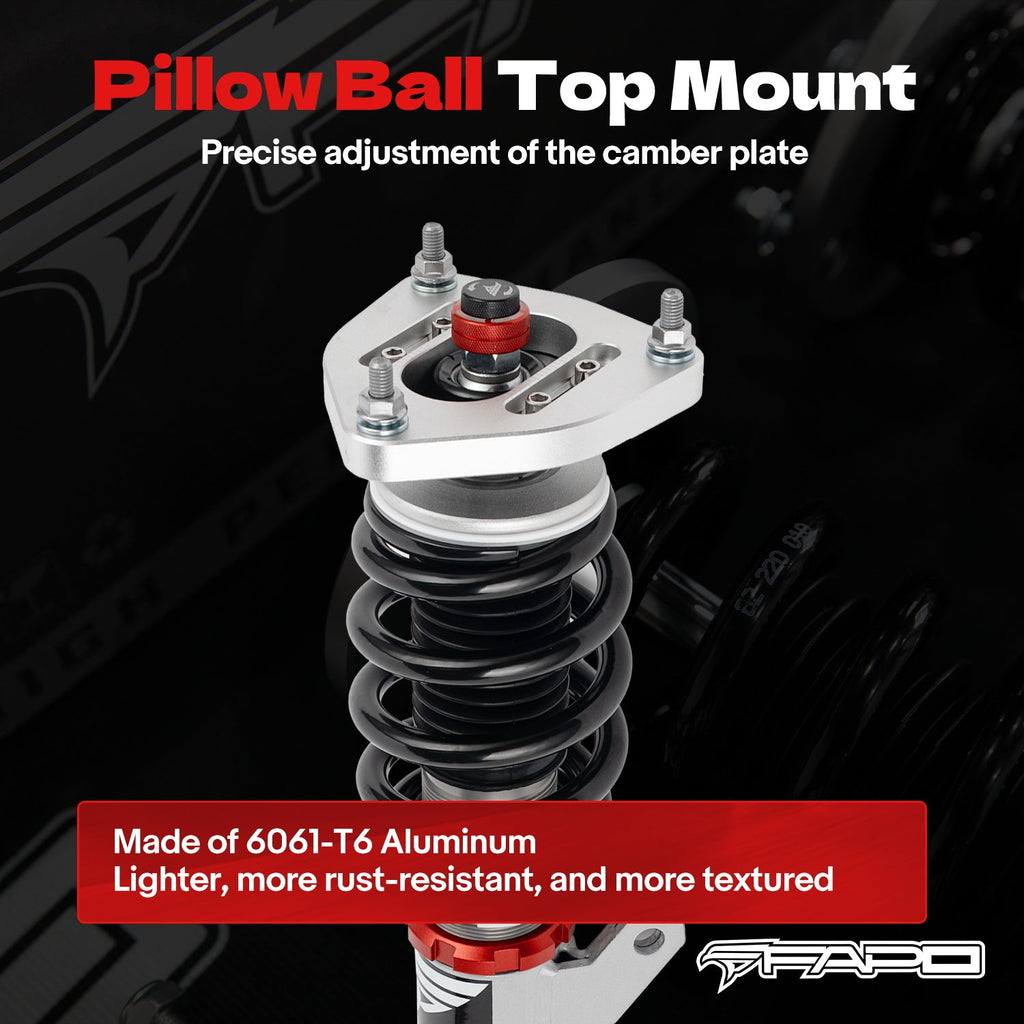

• Mounts: Front: Pillow Ball Camber Plate | Rear: With standard top mounts
• Front Spring: 180mm, 6 kg/mm (335 lb/in)
• Rear Spring: 220mm, 12 kg/mm (670 lb/in)
• Ride Height: lowers 1-1.5 in from factory

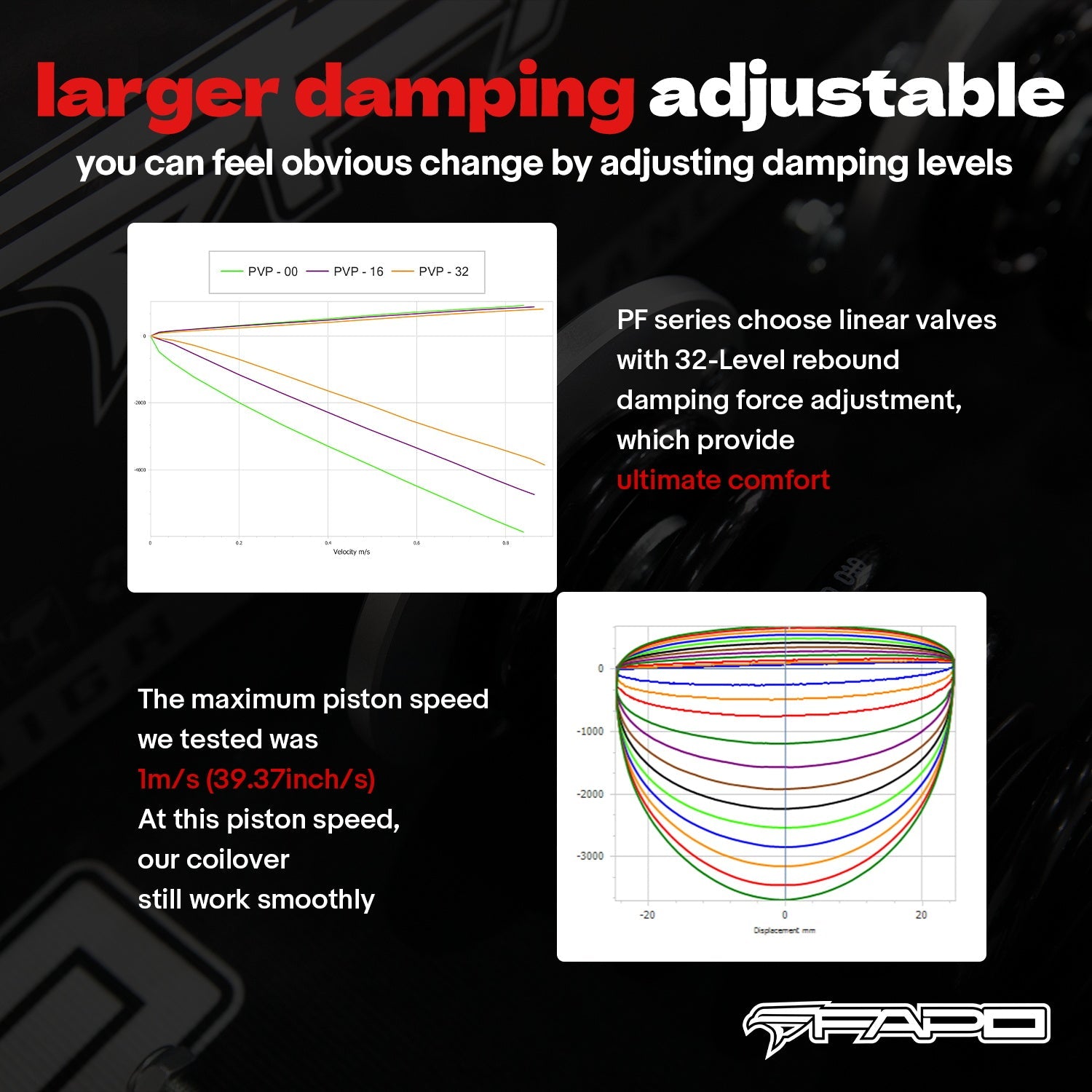

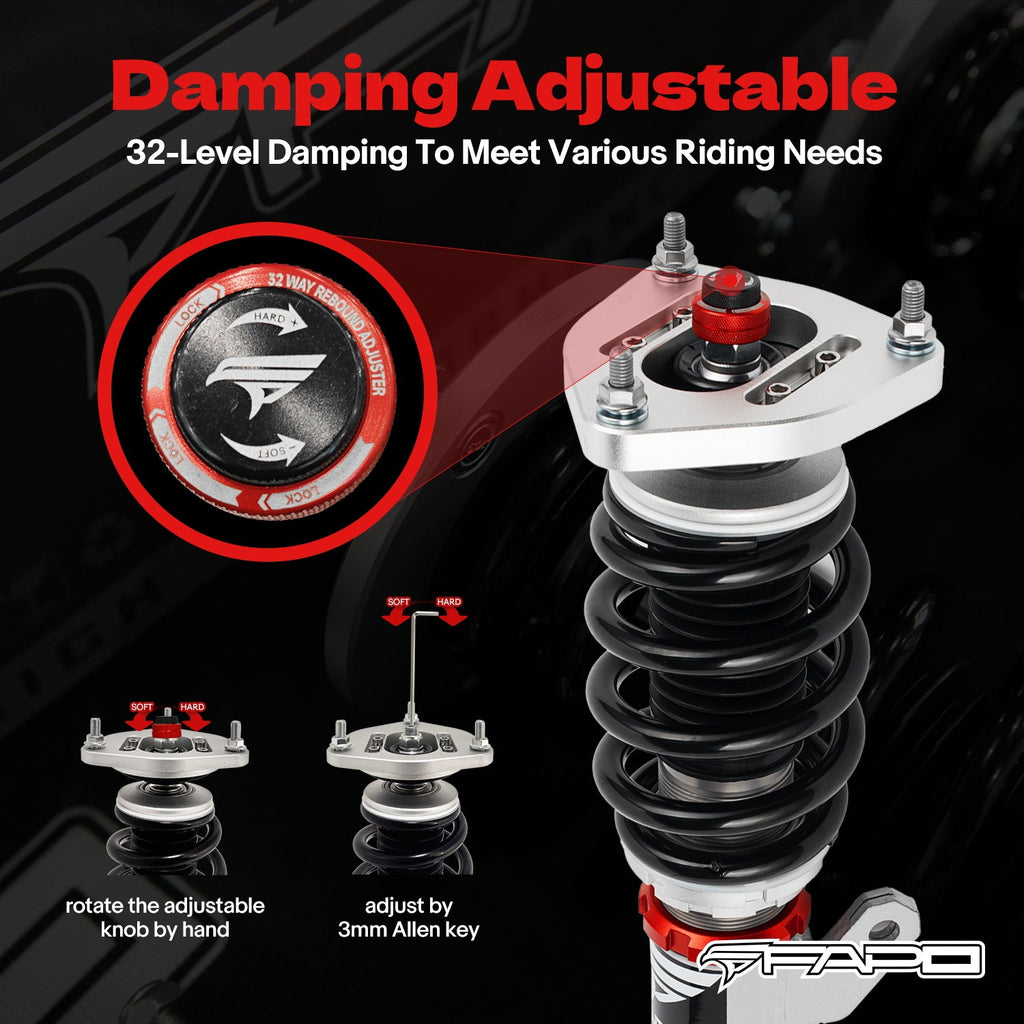

• Damping: 32 Levels

Shock code = tube dia - body length - travel - shaft dia - rod-end thread [valve], in mm.
