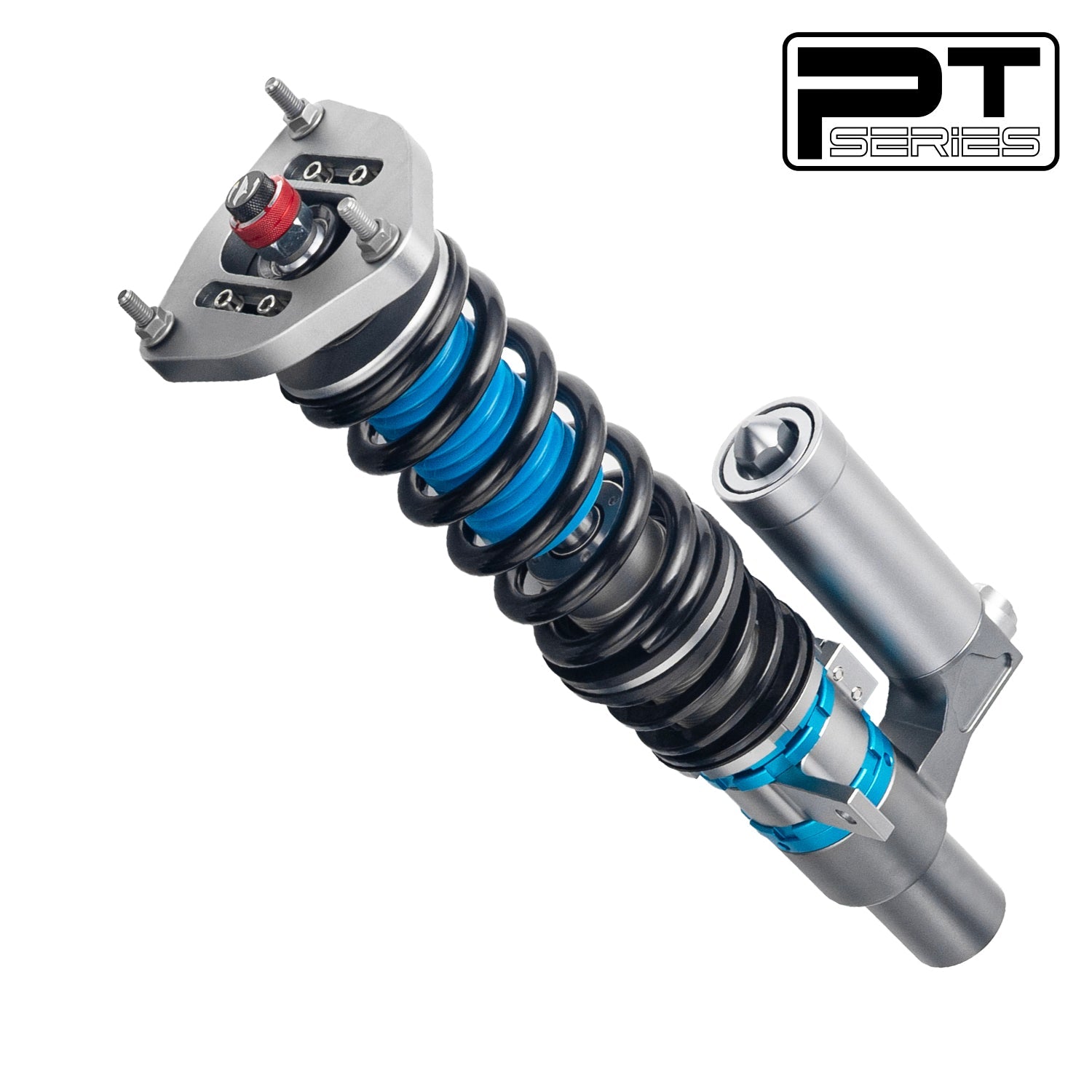

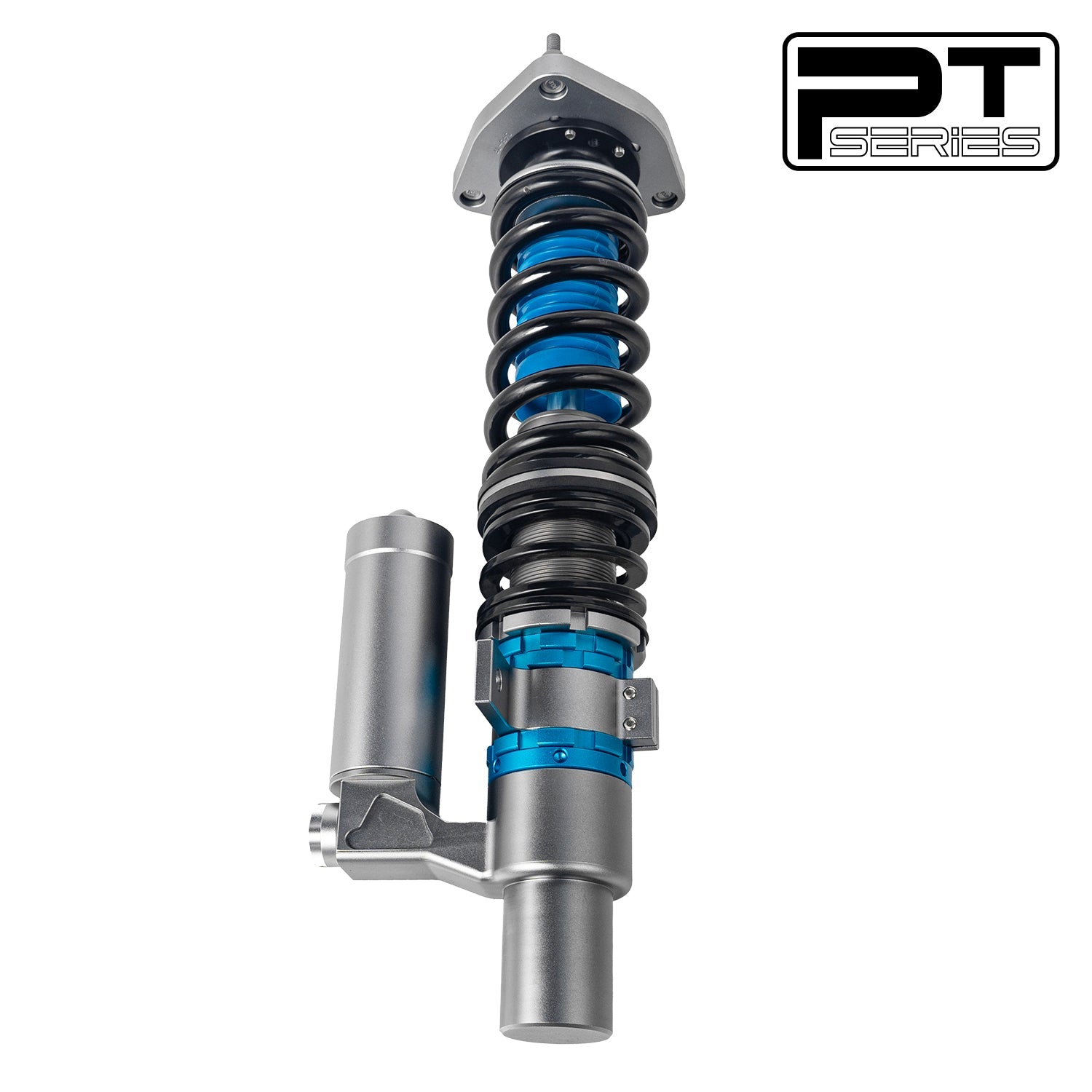

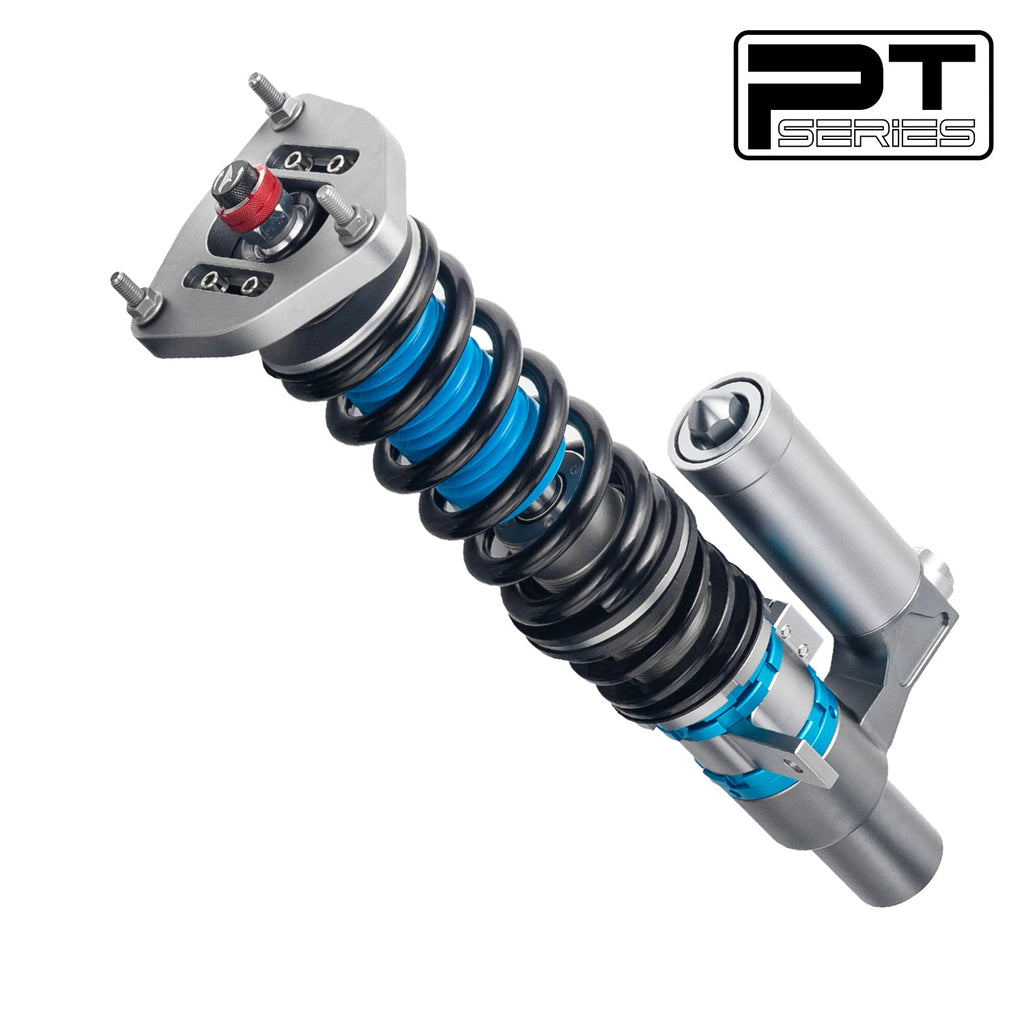

2-way Piggyback Reservoir Coilover for VW Golf GTI MK7/A7/MQB 2012-2020 PT004810

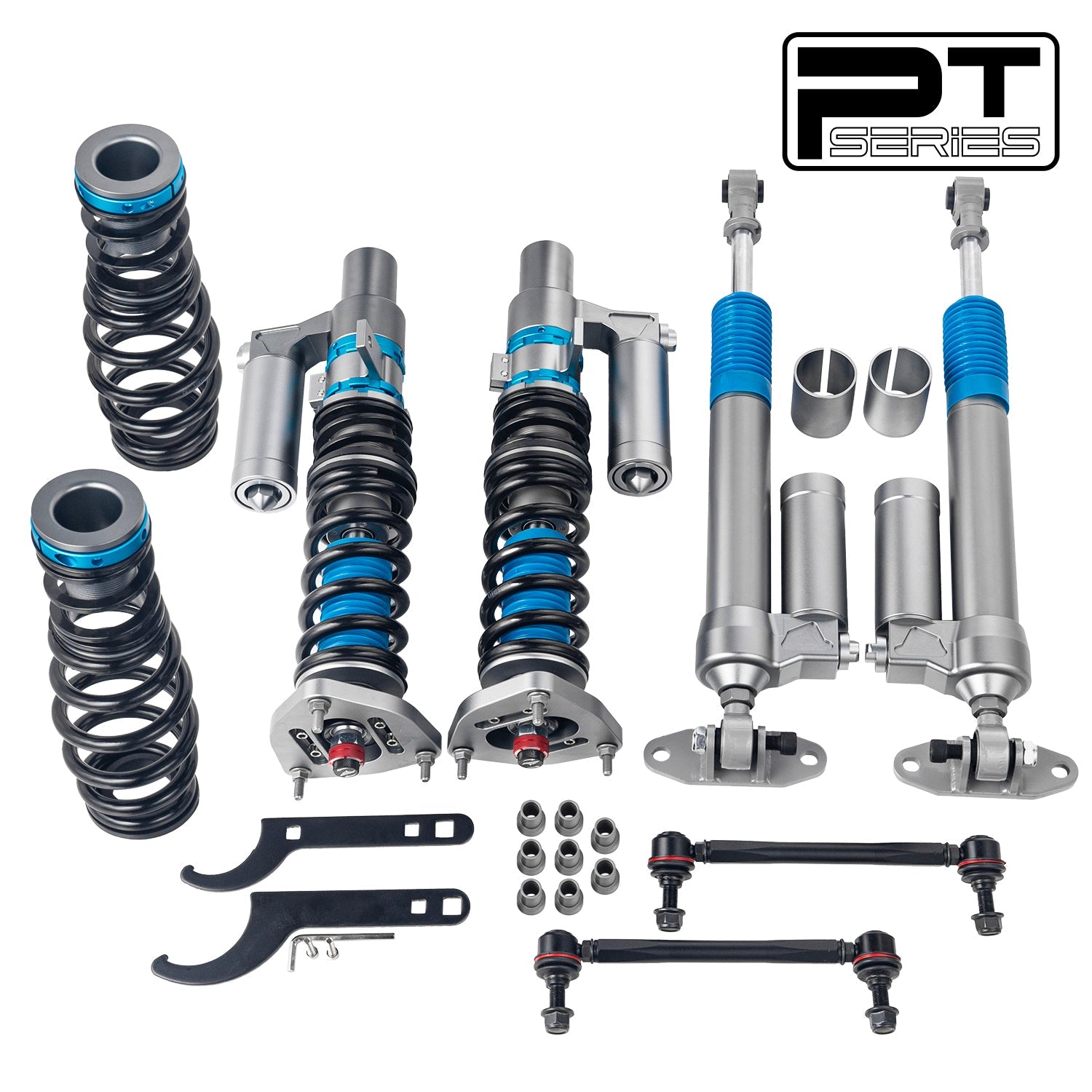

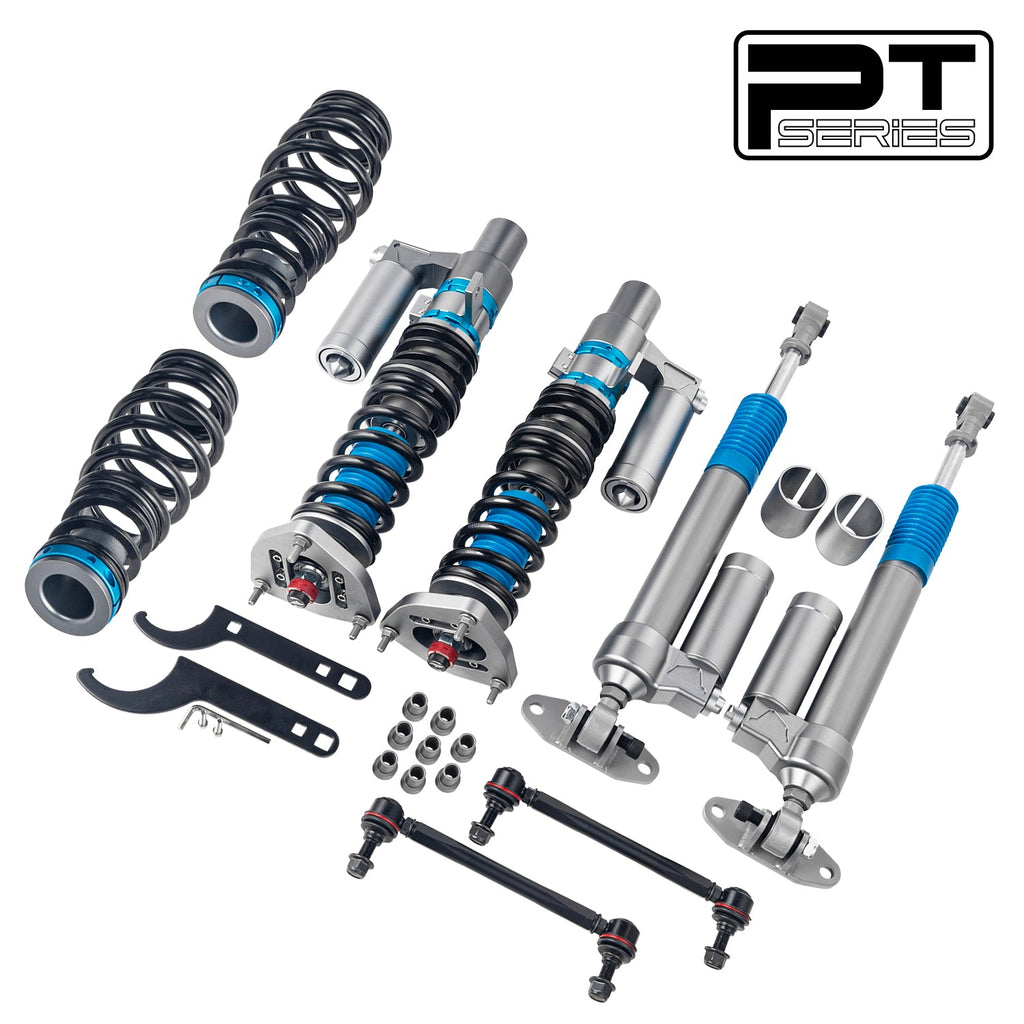

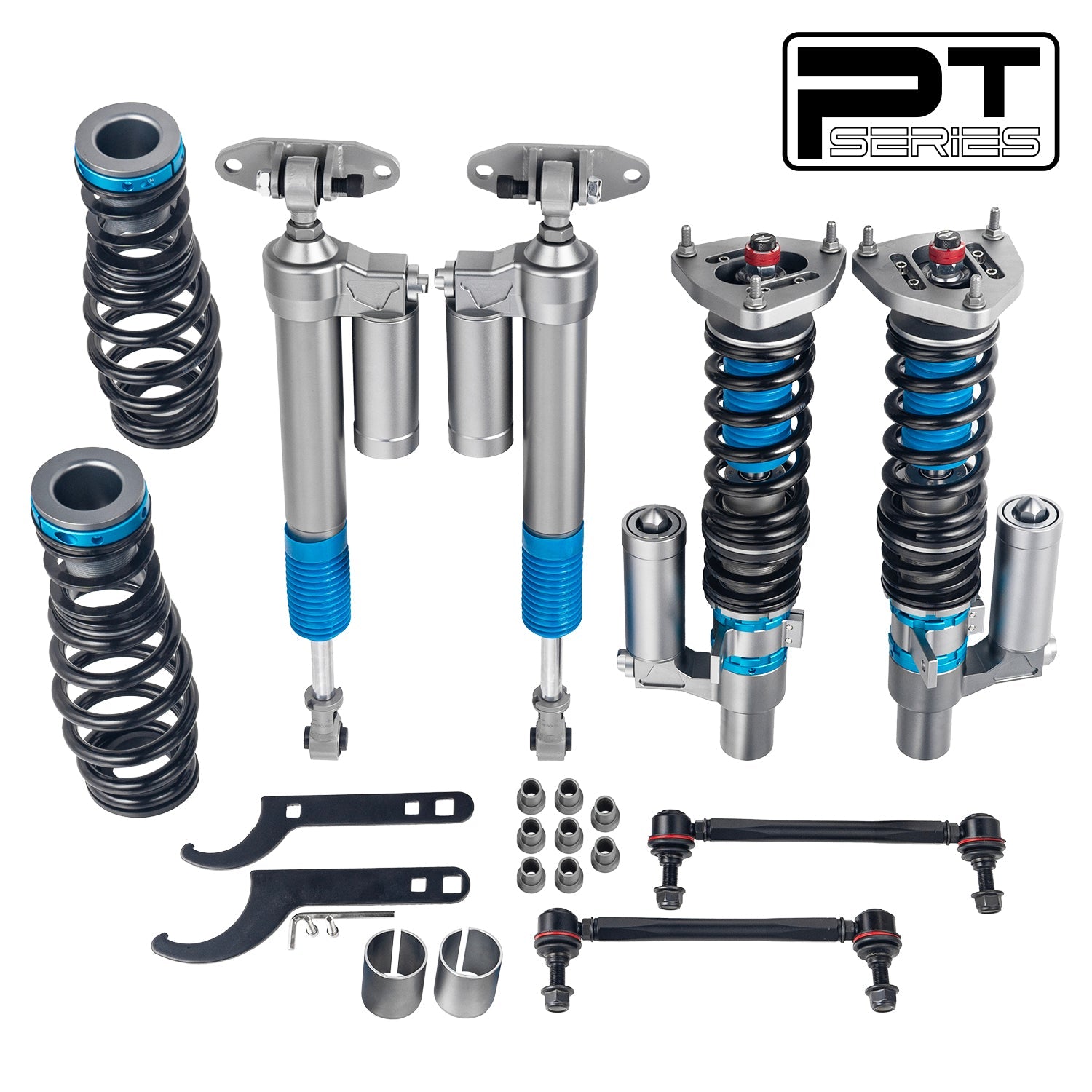

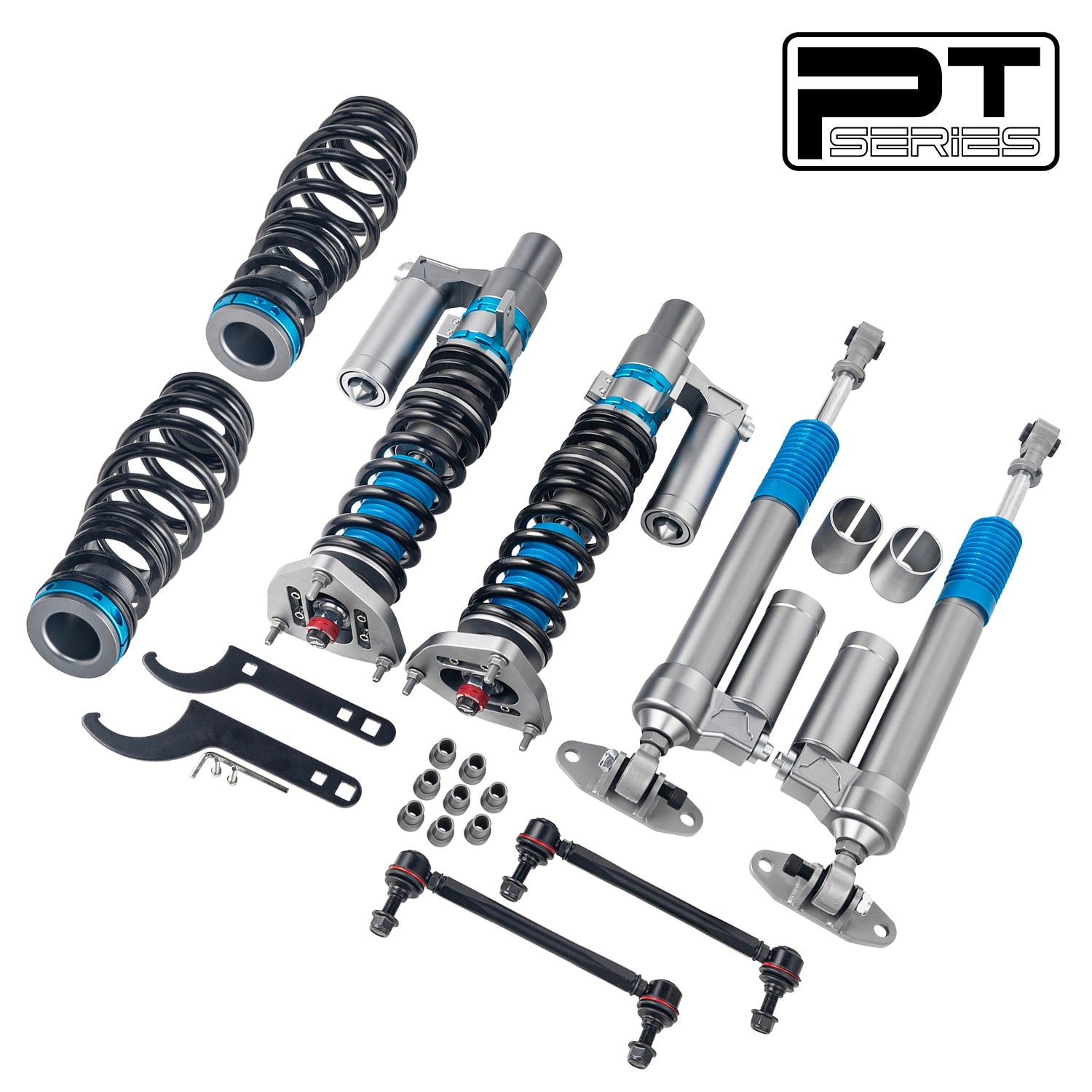

Package Includes

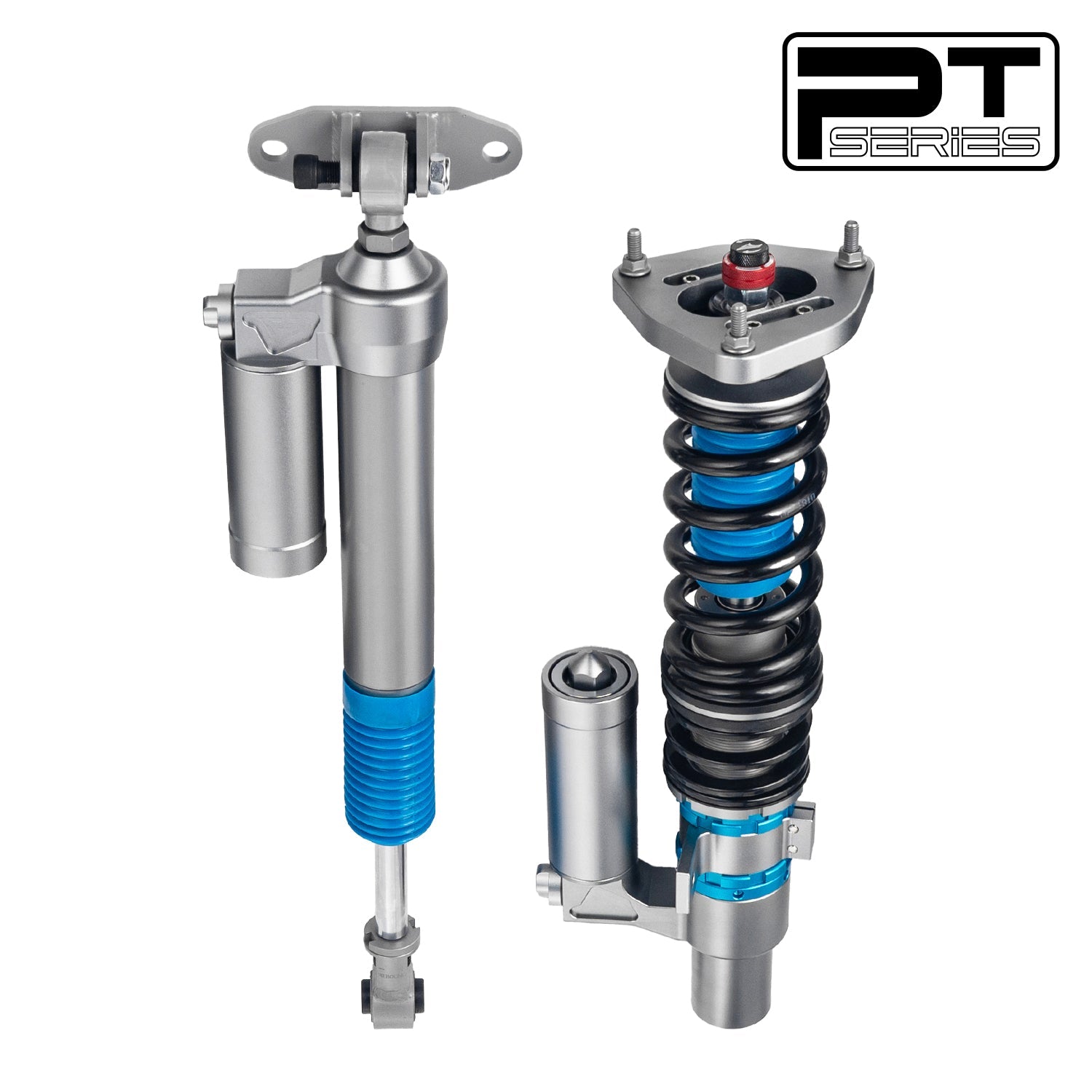

• Front coilovers x 2 pcs

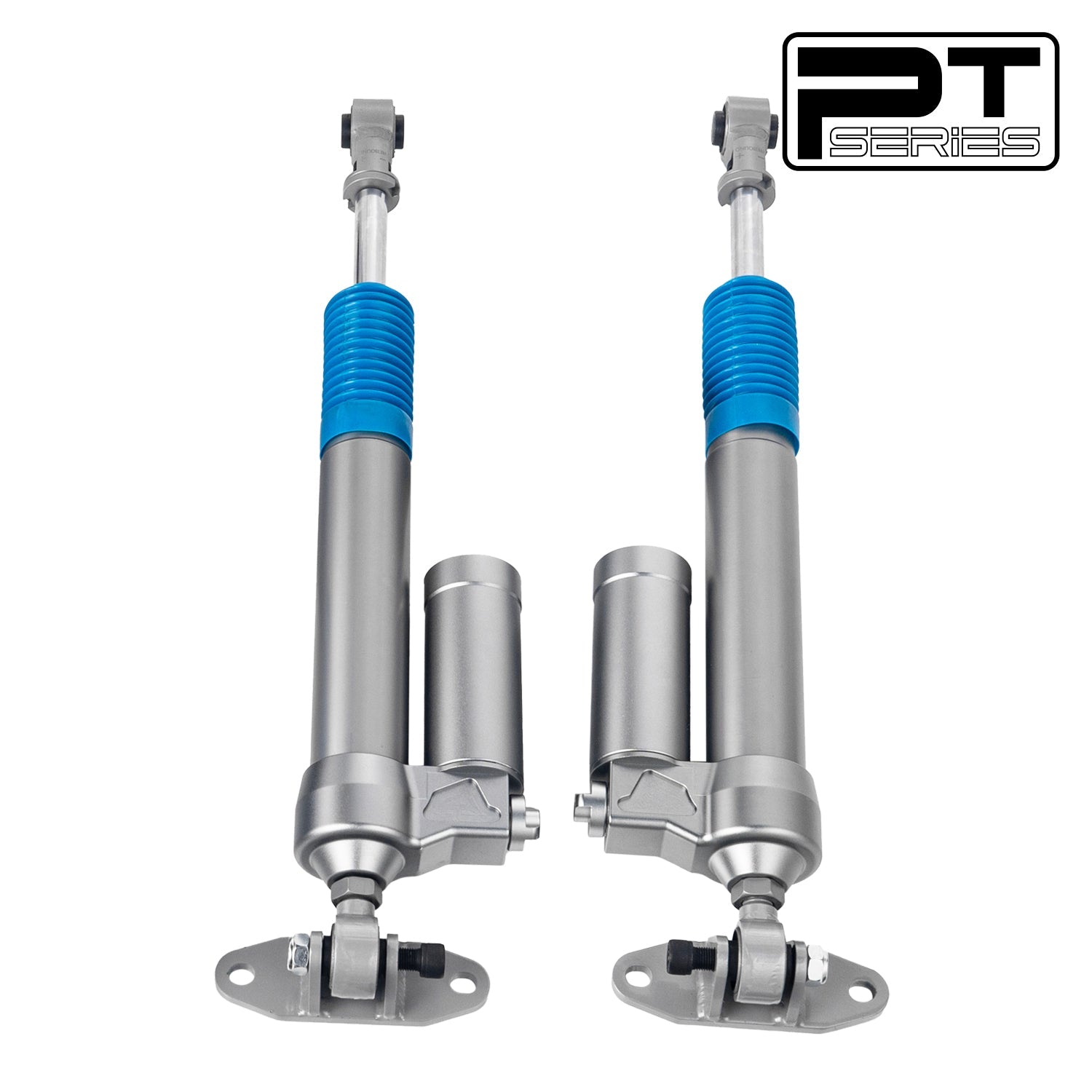

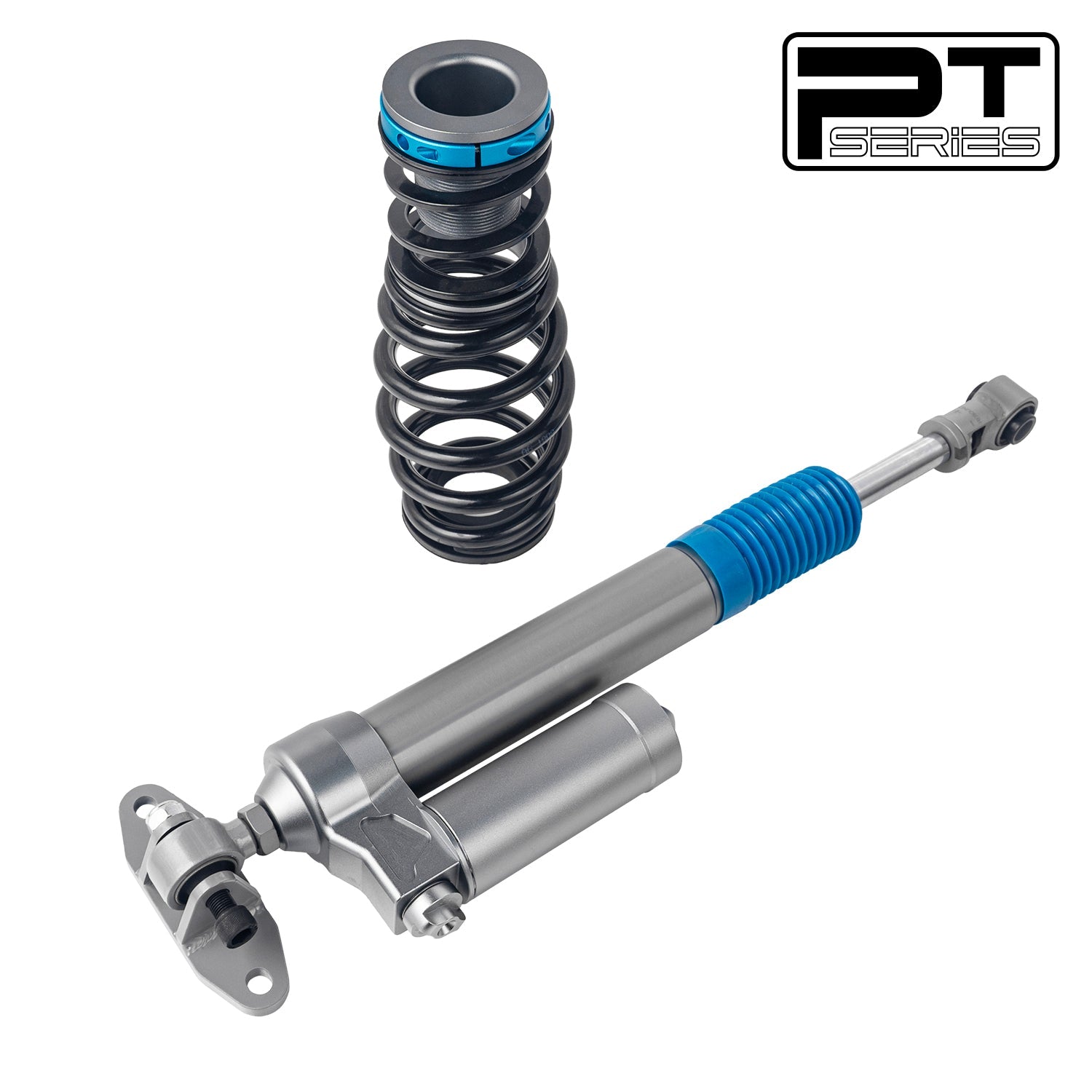

• Rear coilovers x 2 pcs
• Wrench x 2 pcs

• Sway bar link x 2 pcs

Features

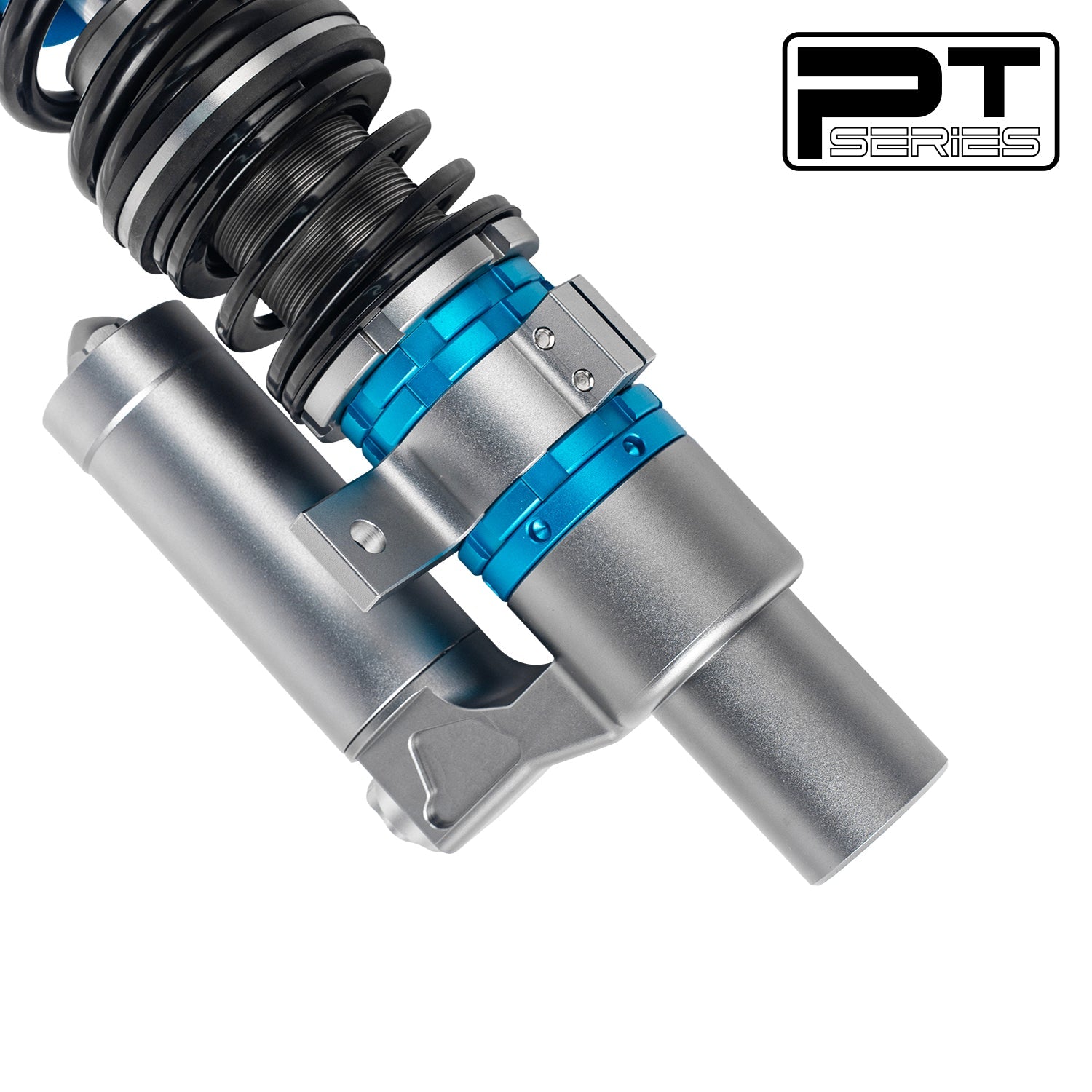

• Mono-Tube design and External Piggyback Nitrogen Gas reservoir provide larger capacity for oil and gas so that it has comfortable ride on Streets, ensures greater damping force under extreme conditions

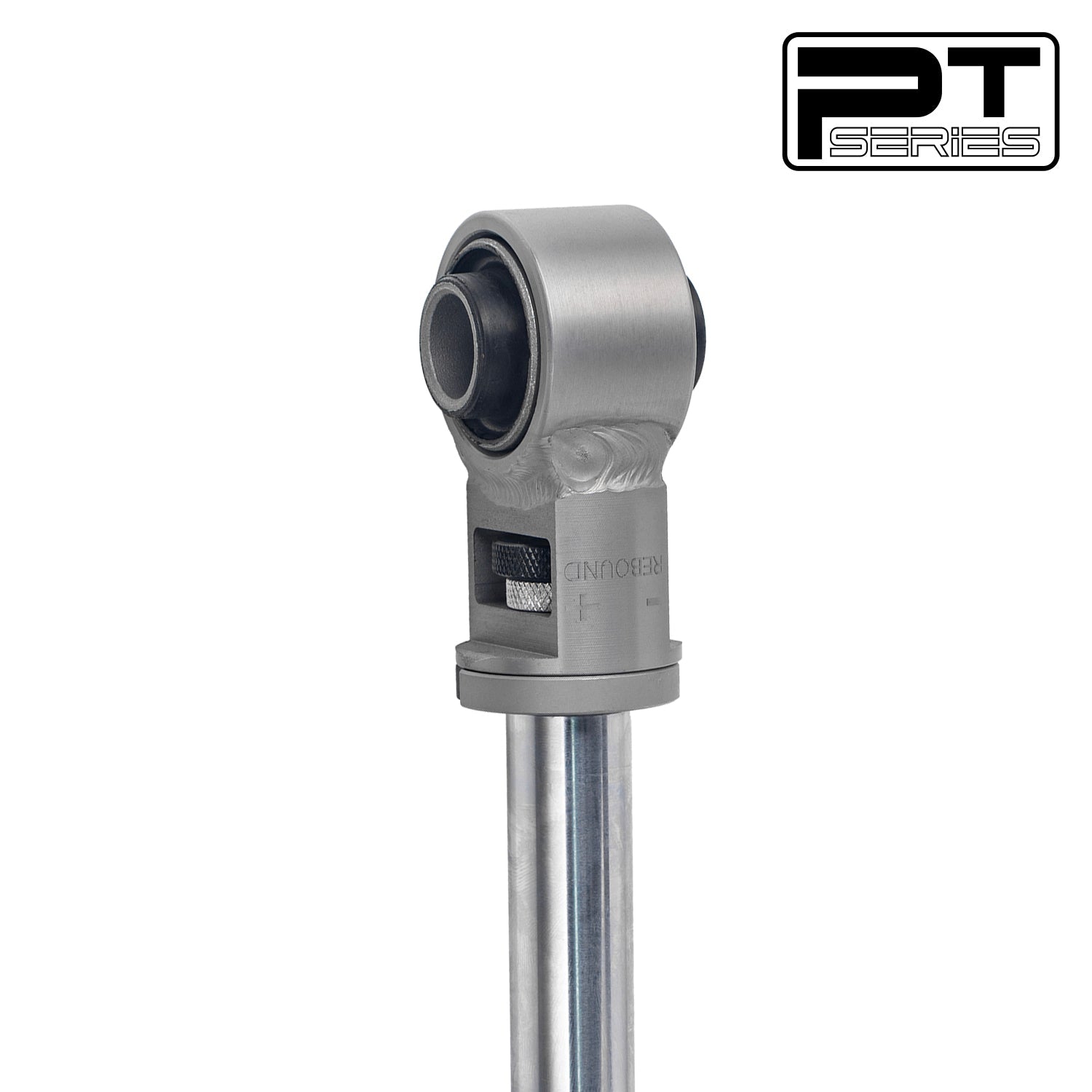

• 2-way Adjustable - Compression and rebound are independently adjustable, with 32 Clicks for rebound and 22 clicks for compression.
• Ride Height Adjustable - Drops from 1" to 1-1/2" from Factory Ride Height (up to 2-1/2 to 3" depends on vehicle chassis design).
• Long-travel, non-full-length threaded absorber tube lowers the vehicle while significantly improving ground clearance and ride comfort.
• Adjustable Pre-load spring tension - usually the springs should be pre-loaded 7-10mm at the first time before installation.

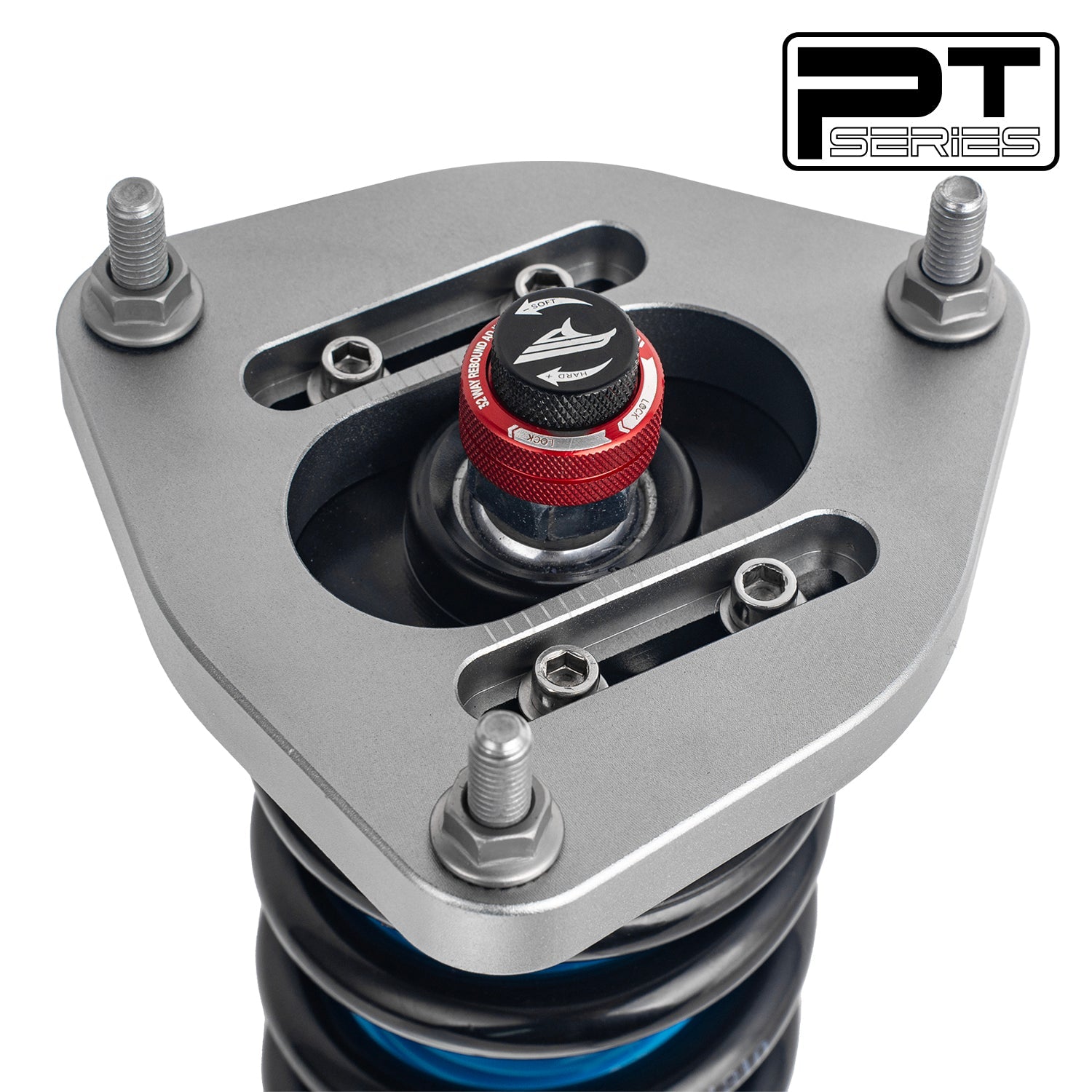

• Pillow ball top mount -- this design helps reduce noise while tuning, and improves the steering feel and response.
• Hi Tensile performance spring - Under 600,000 times continuously test, the spring distortion is less than 0.04%. Plus, the special surface treatment is to improve the durability and performance.
• Manufactured from high quality T-6061 billet aluminum with an anodized finish for superior strength and corrosion protection.
• Suitable for both street and race - The wide adjustment range meets users' needs for daily driving comfort as well as racing support.
• All inserts come with fitted rubber boots to protect the damper and keep clean.
• Improve your handling performance without sacrifice comfortable ride.
• A fast and affordable way to easily upgrade your car's appearance.
• Easy installation with right tools.
• Ideal for track, drift and fast road and can also be used for daily driving.


Warranty

All items carry standard 1 year warranty from purchase date. Proof of purchase required. For warranty claims, please provide order number and documentation (photos/videos) of the issue. Additional information may be requested to properly diagnose problems.

Specifications:

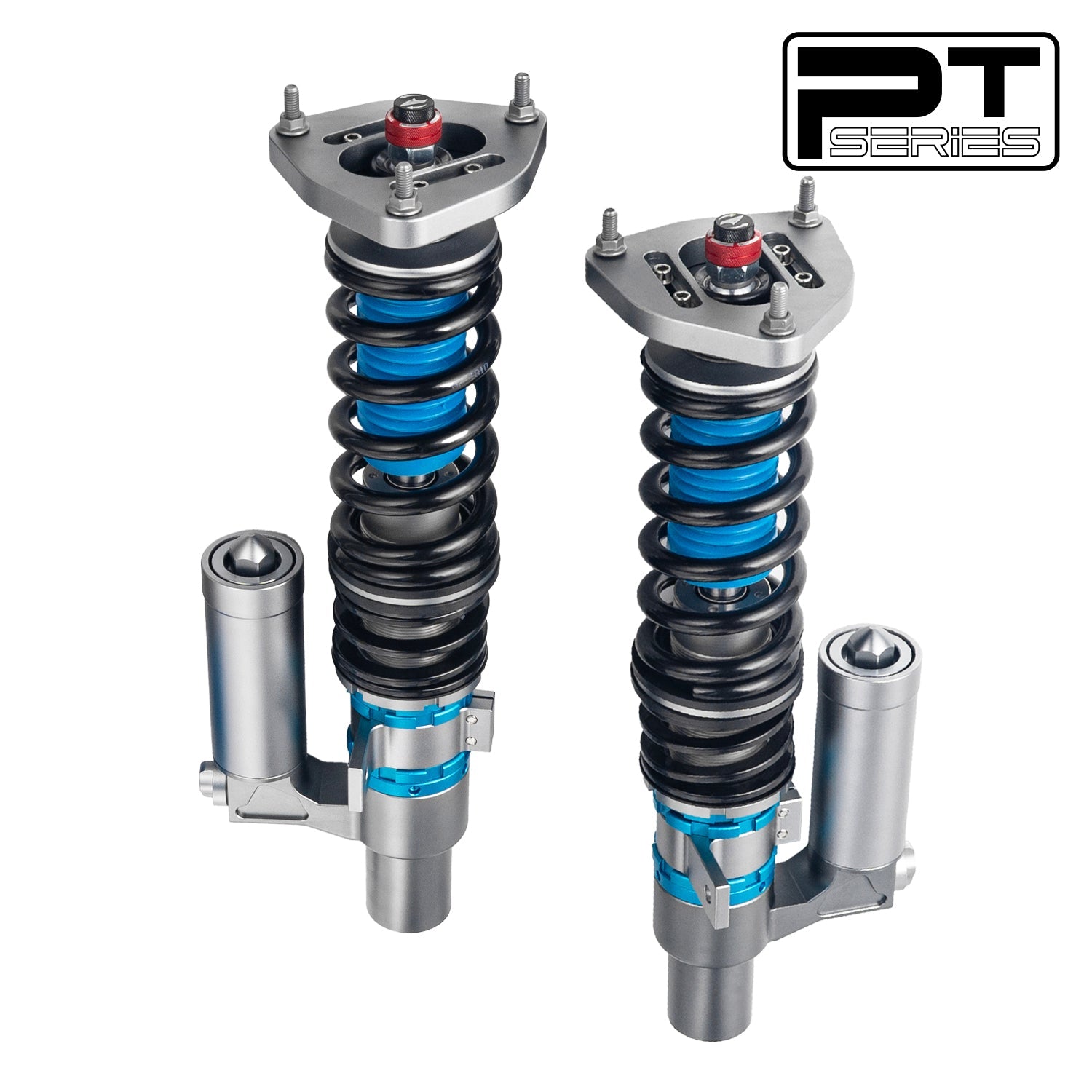

• Front Shock: 53-220-140-20-M14 [4-M2-11]

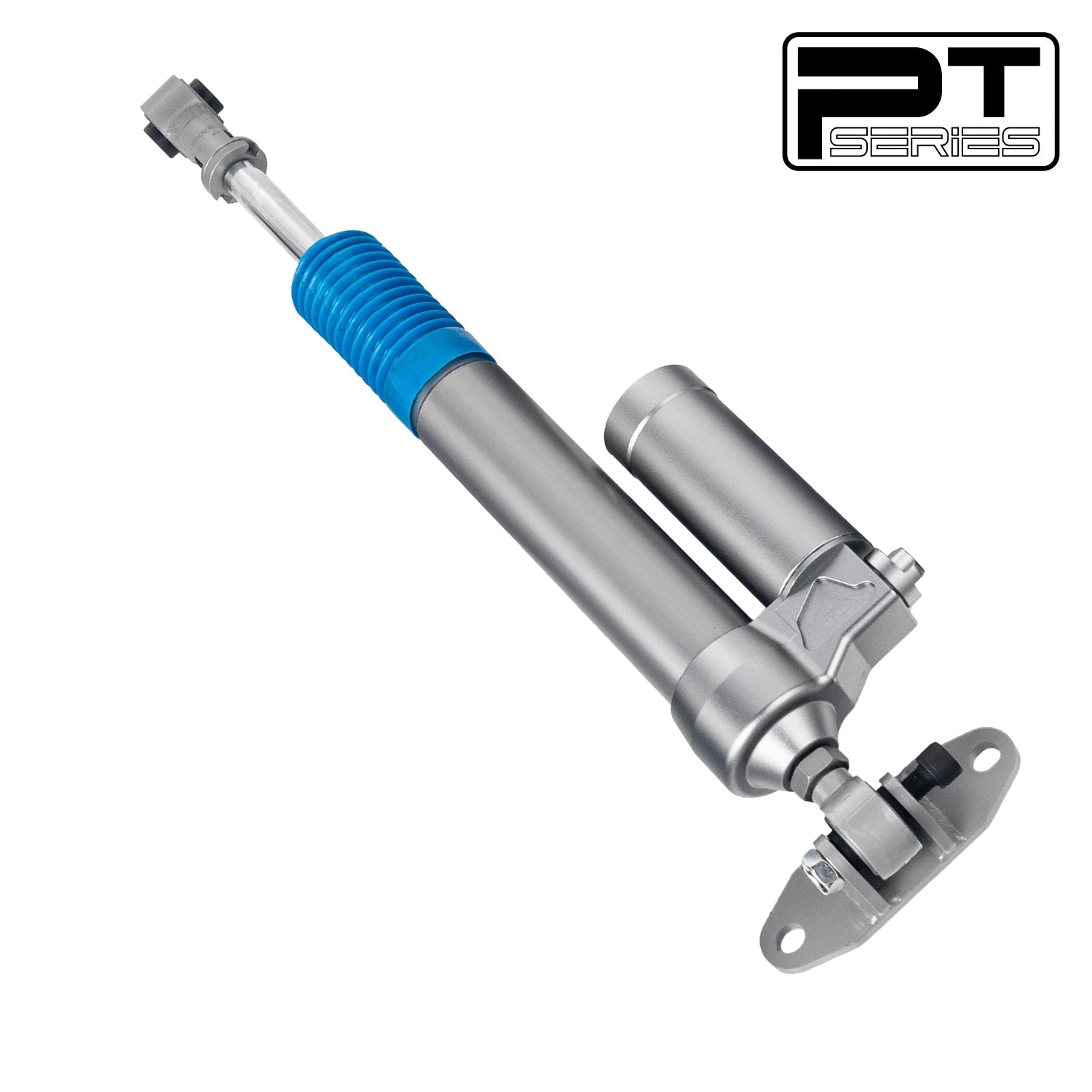

• Rear Shock: 53-265-180-20-M16 [4-M2-11]
• Mounts: Front: Pillow Ball Camber Plate | Rear: With standard top mounts
• Front Spring: 180mm, 10 kg/mm (560 lb/in)
• Rear Spring: 180mm, 8 kg/mm (445 lb/in)
• Damping: 32 Levels

Shock code = tube dia - body length - travel - shaft dia - rod-end thread [valve], in mm.
