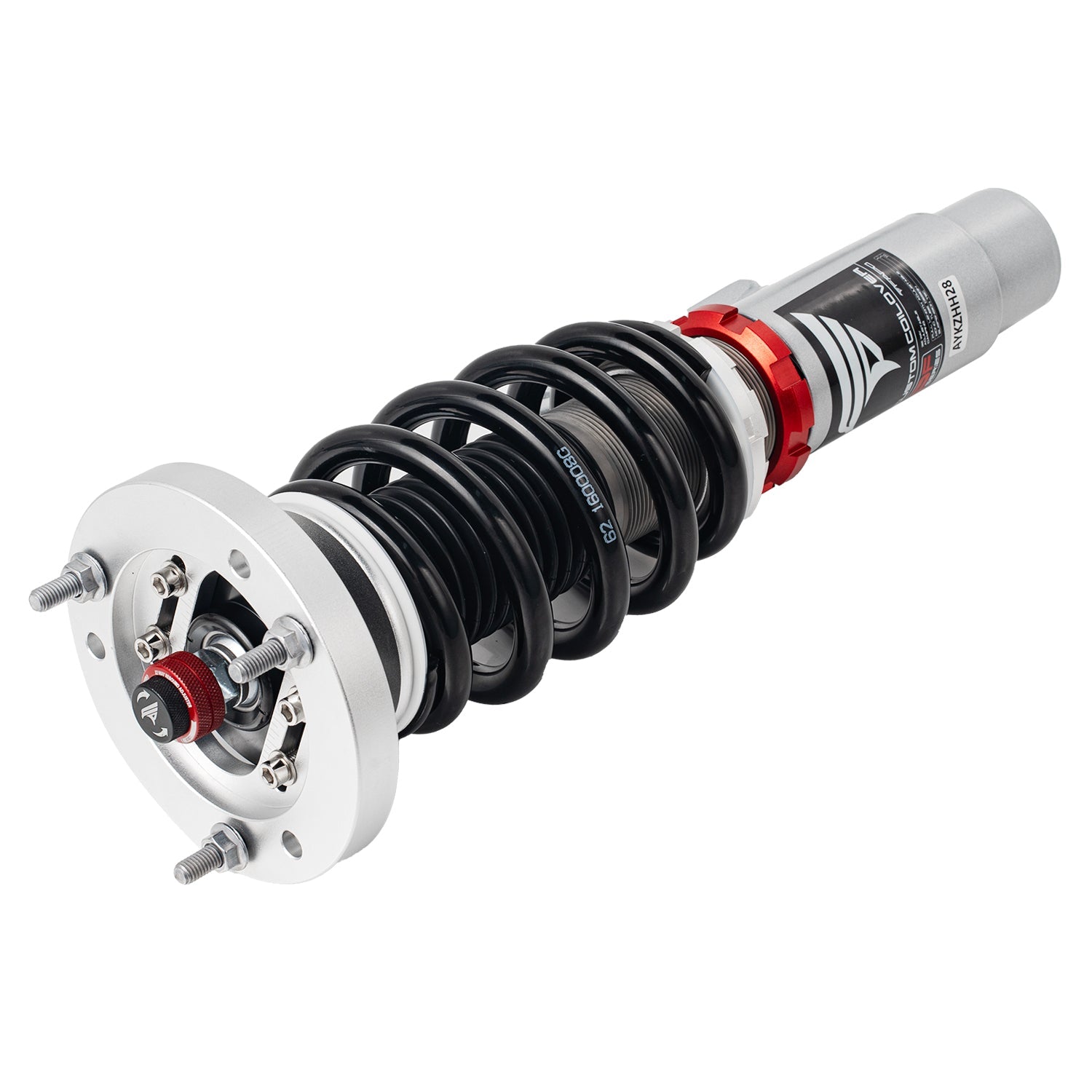

32-Level Damping Coilover For BMW 3 Series 5th Gen AWD E90 2006-2011 PF026430

Features:

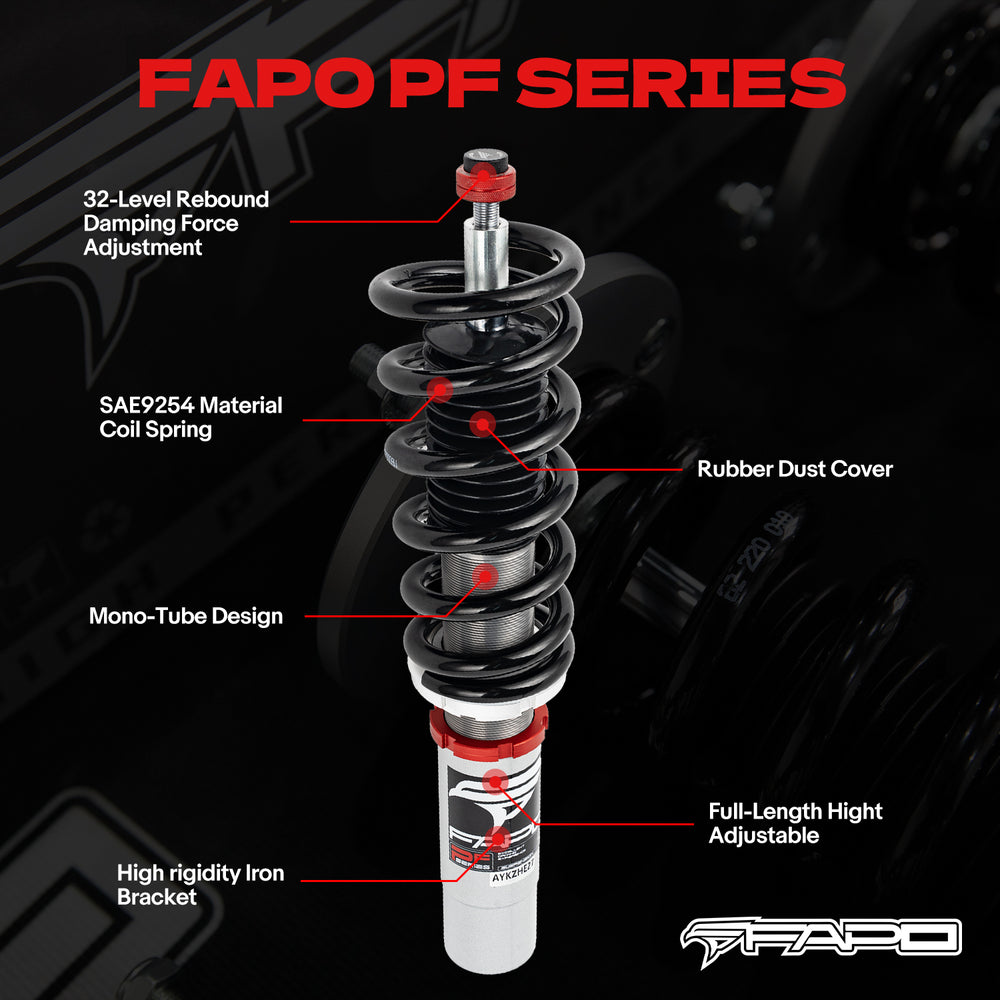

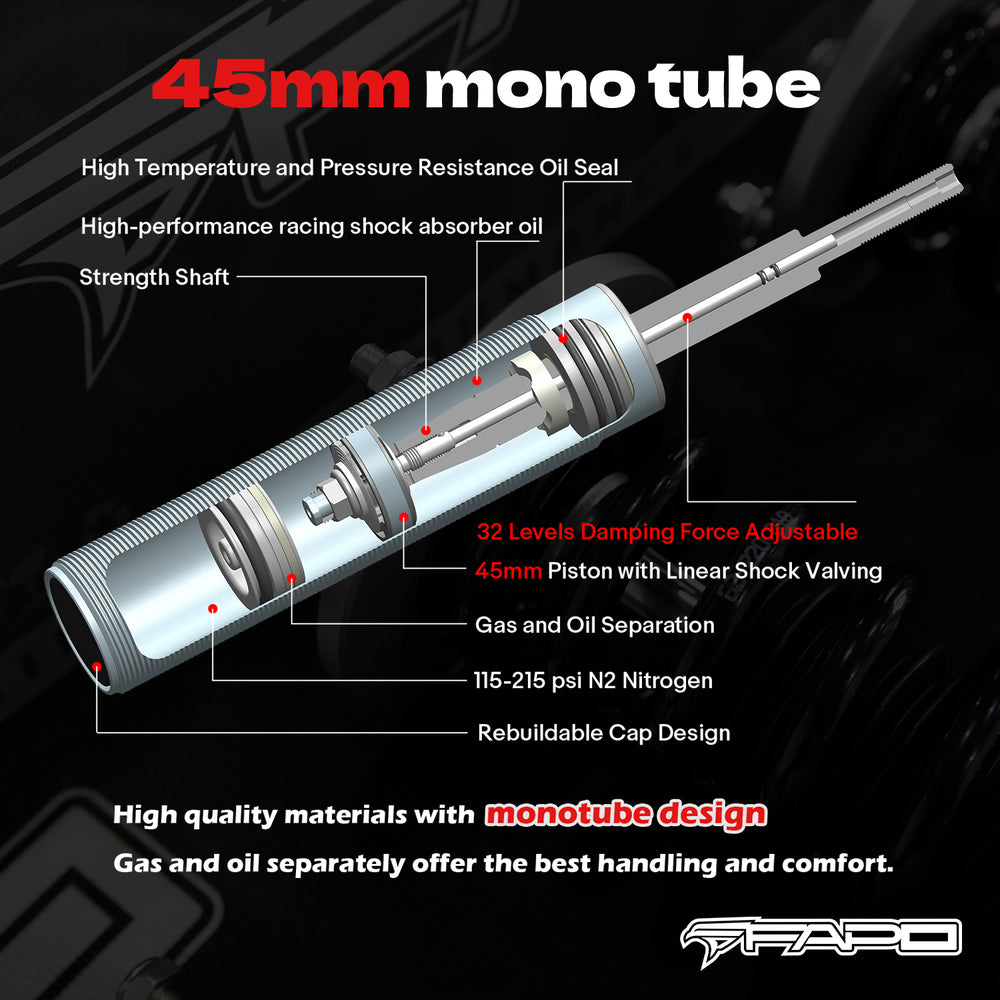

• Mono-tube design provides larger oil and gas capacity for a smoother and more comfortable street ride
• Ride height adjustable - lowers 1" to 1.5" from factory height (up to 2.5-3" depending on vehicle chassis)

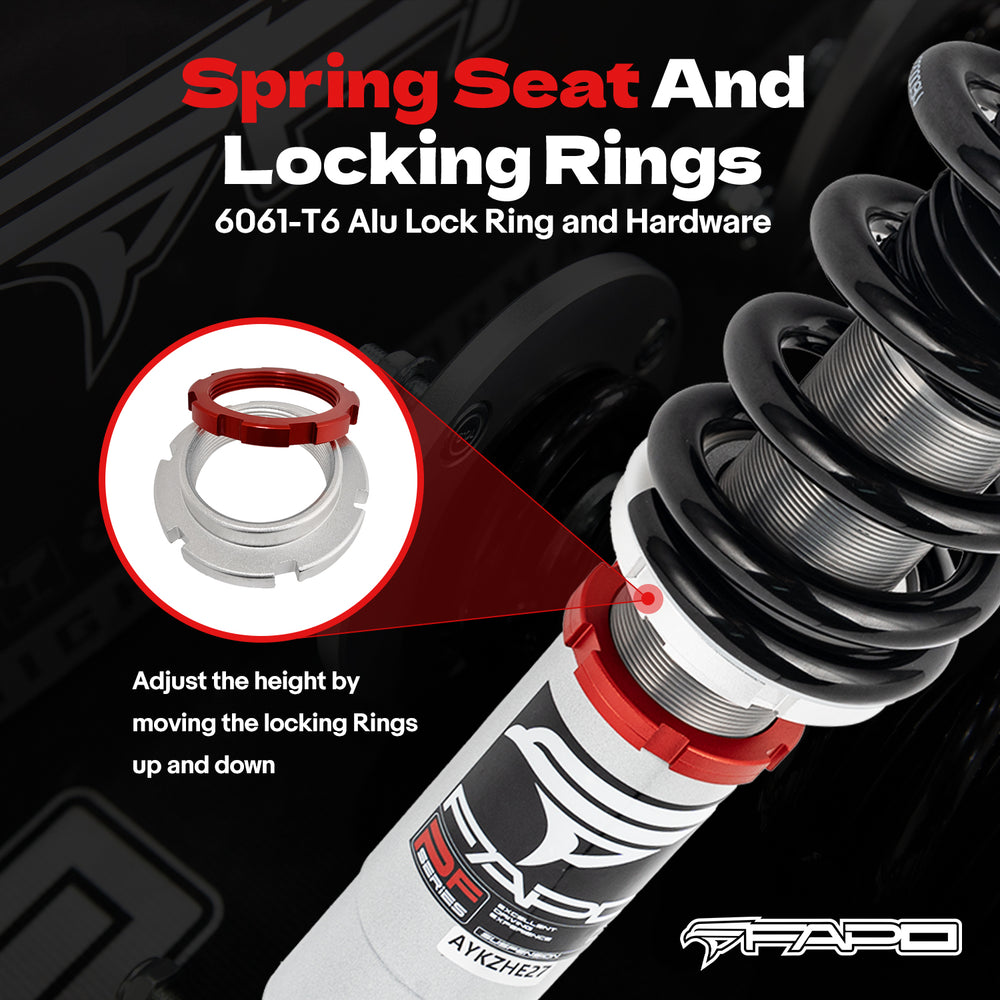

• Fully threaded absorber tube casing for independent height adjustment
• Adjustable pre-load spring tension -recommended 7-10mm pre-load before installation

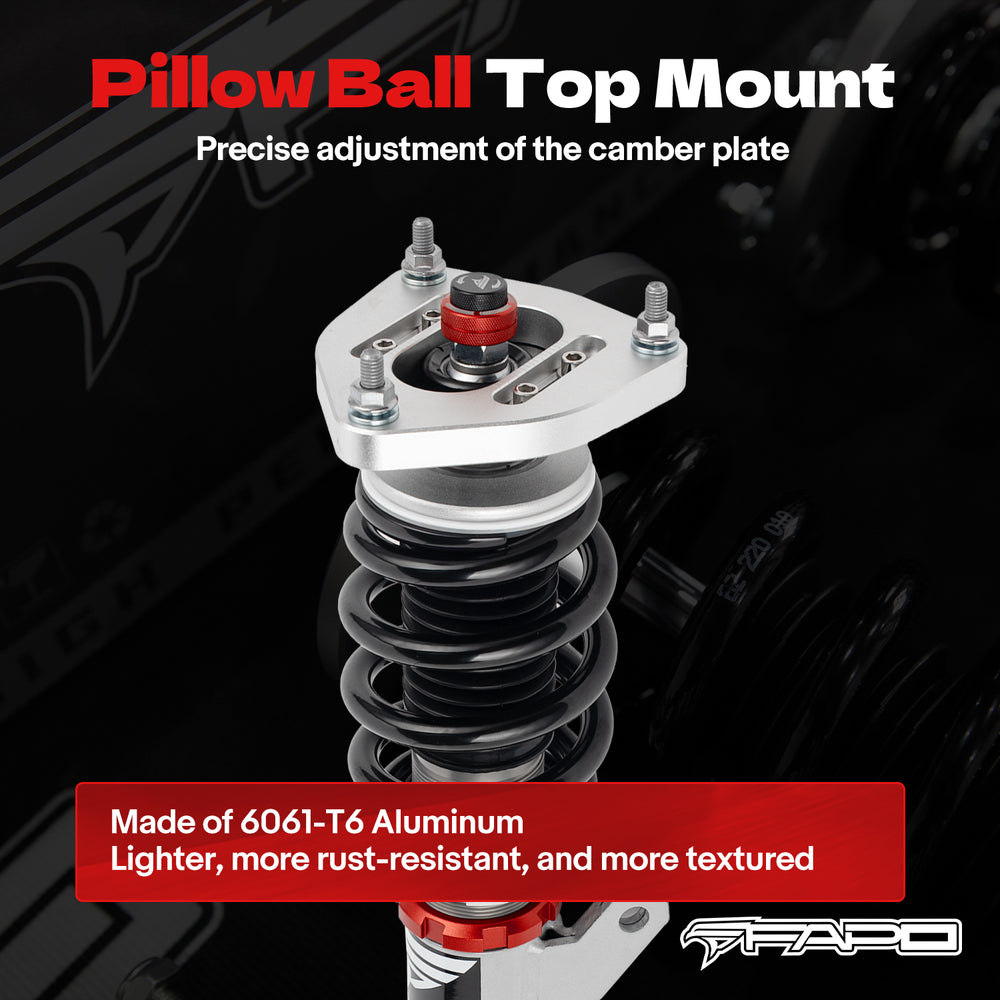

• Pillow ball top mount reduces noise during tuning and improves steering feel and response

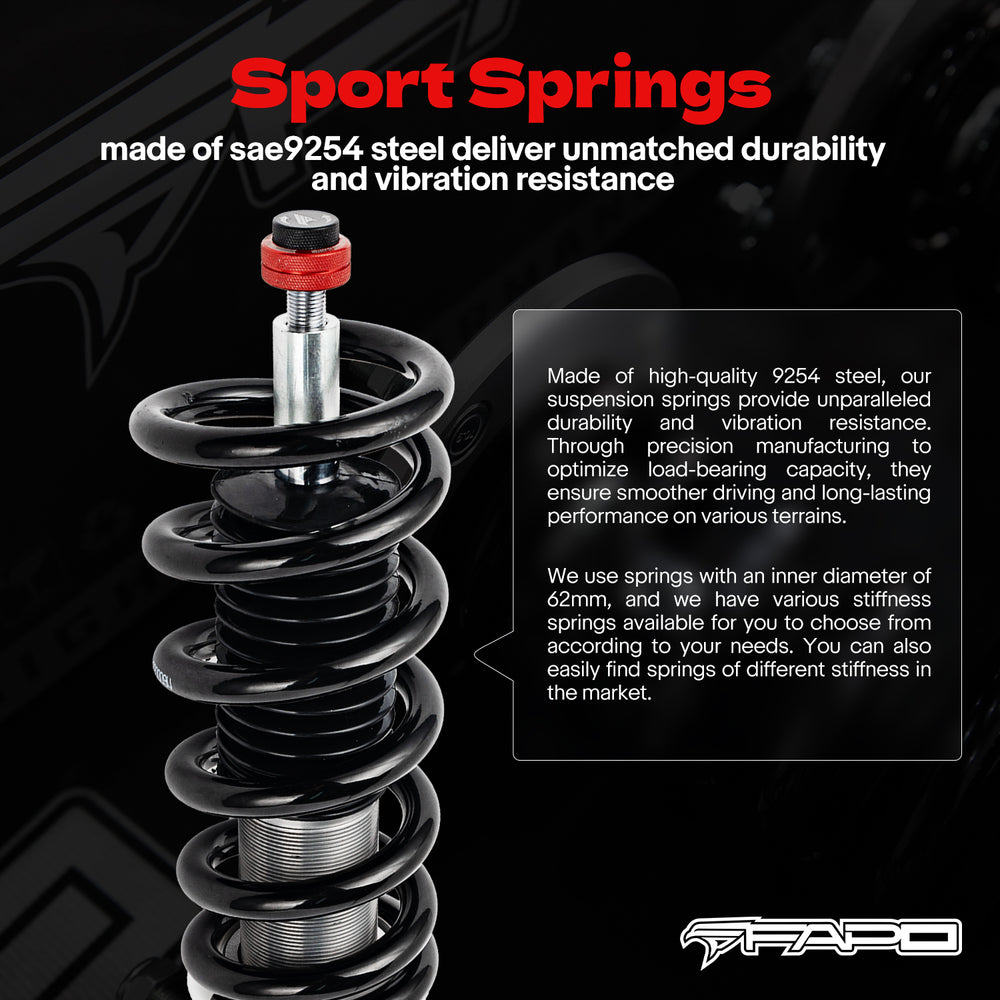

• High-tensile performance springs tested over 600,000 cycles with less than 0.04% distortion; special surface treatment enhances durability
• Constructed from T-6061 billet aluminum with anodized finish for superior strength and corrosion resistance

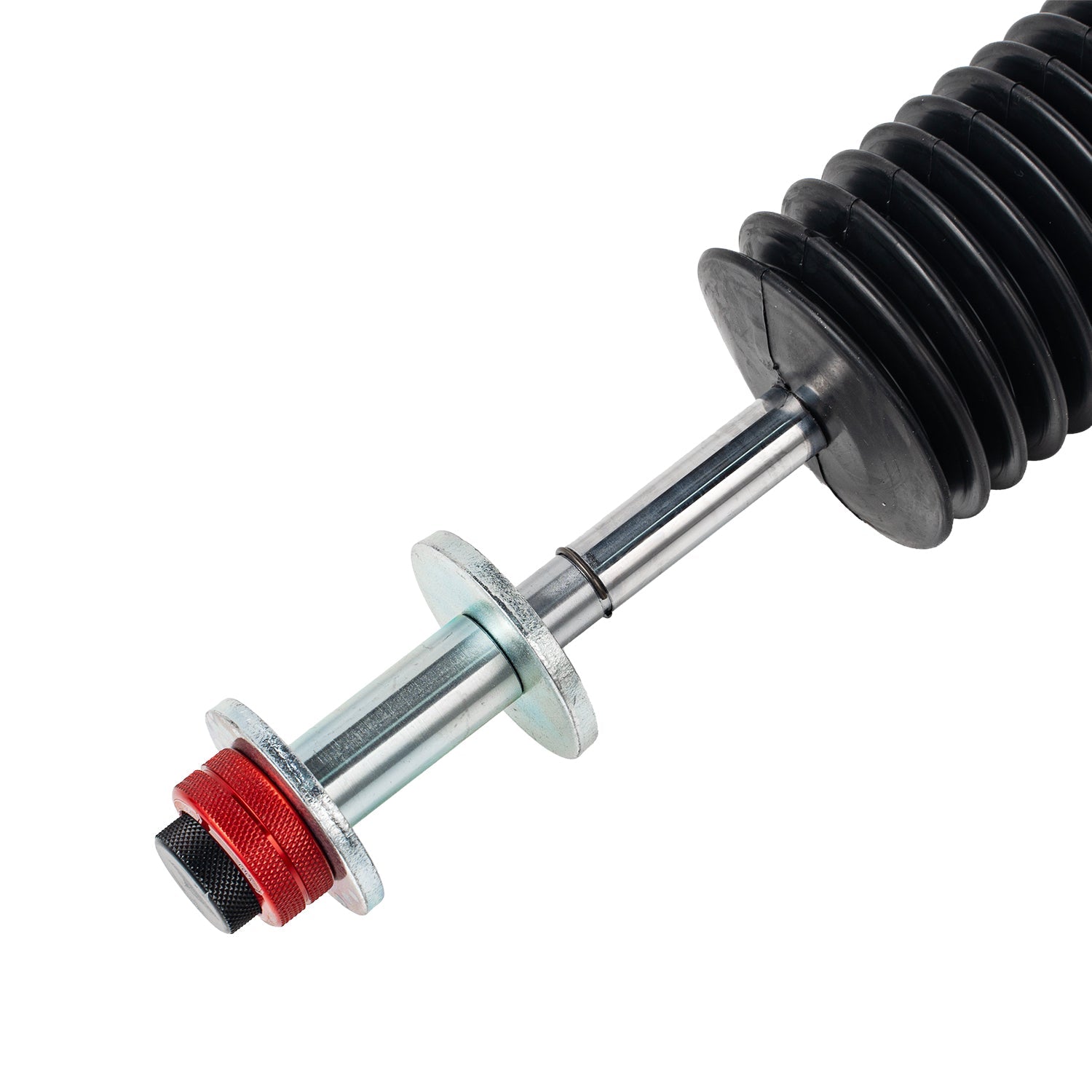

• All inserts include fitted rubber boots to protect the dampers and keep debris out
• Improves handling performance without sacrificing ride comfort
• An effective and affordable upgrade to enhance vehicle appearance

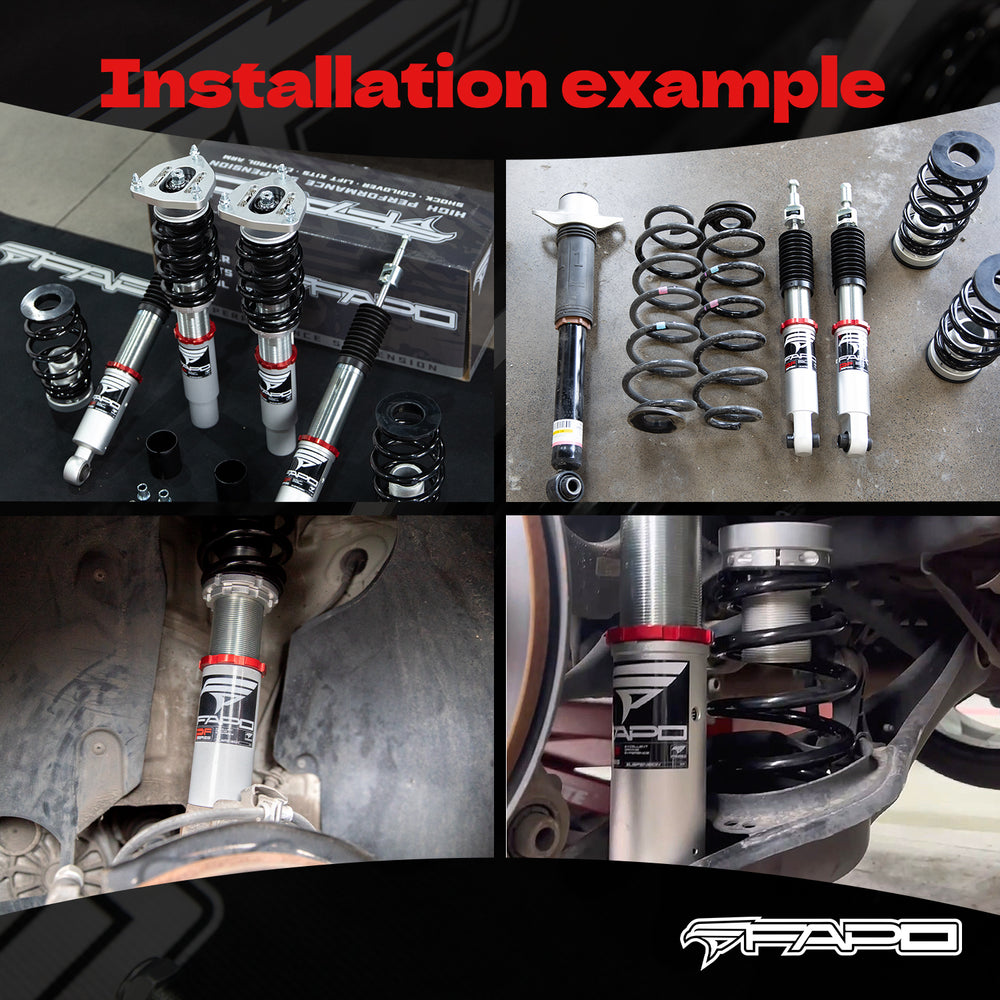

• Easy installation with proper tools
• Suitable for track, drift, fast road, and daily driving
• All accessories shown in photos are included
• 1-year warranty against manufacturing defects

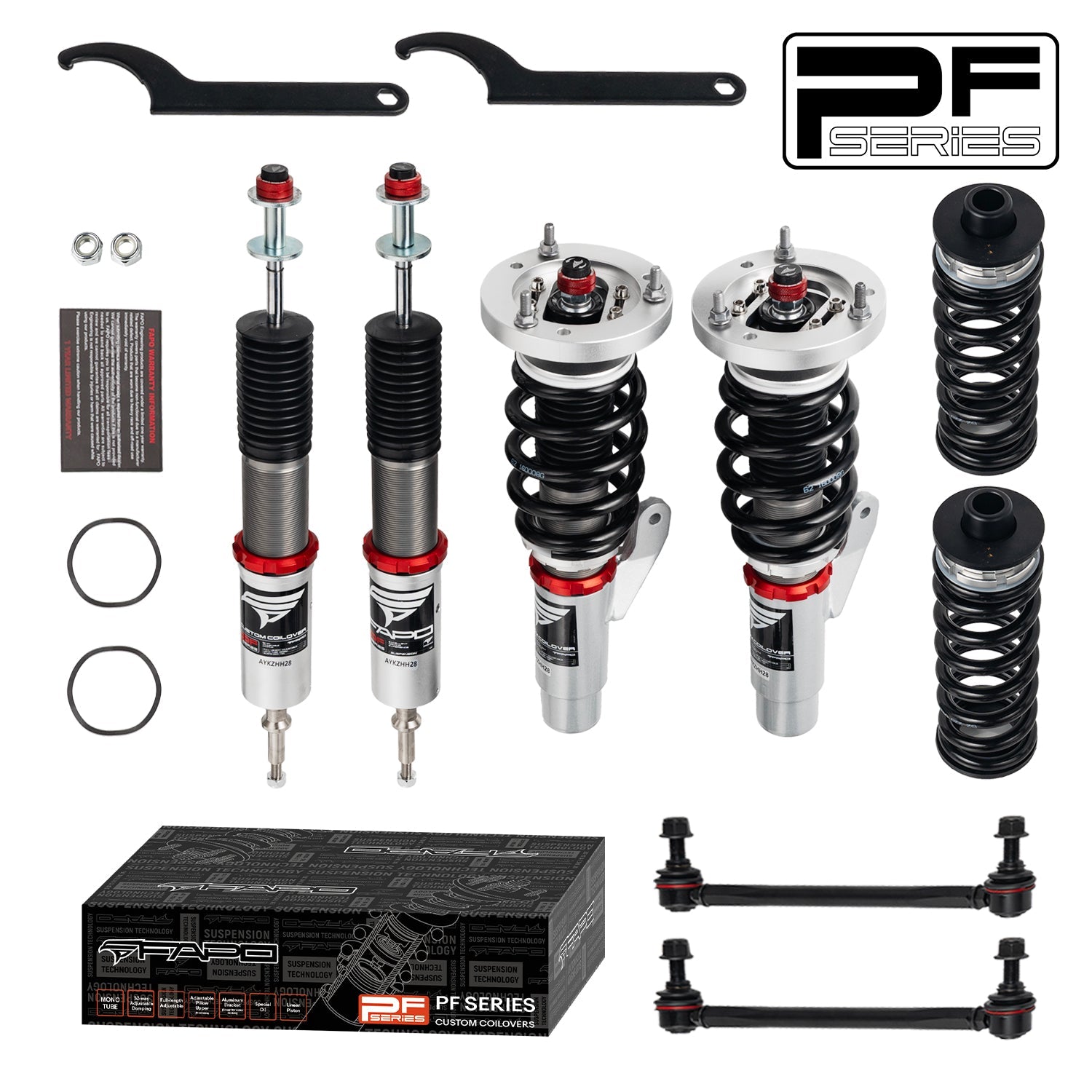

Package Included:

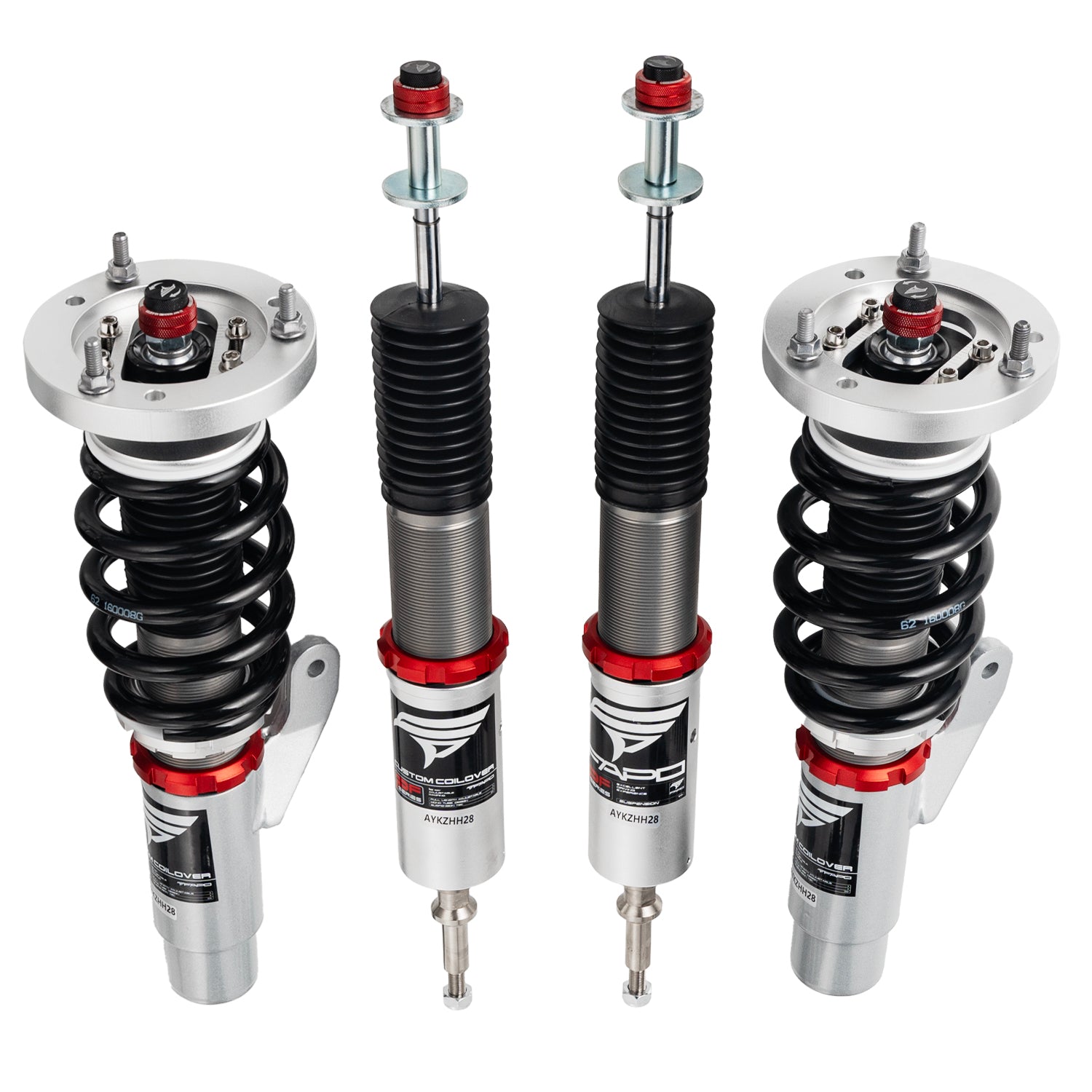

• 1 Set of Coilover Spring Kit (2 Front + 2 Rear)

• Wrench × 2 pcs
• 1 Pair of sway bar links

Specifications:

• Front Shock: 53-200-90-20-M12 [4-M2-4]

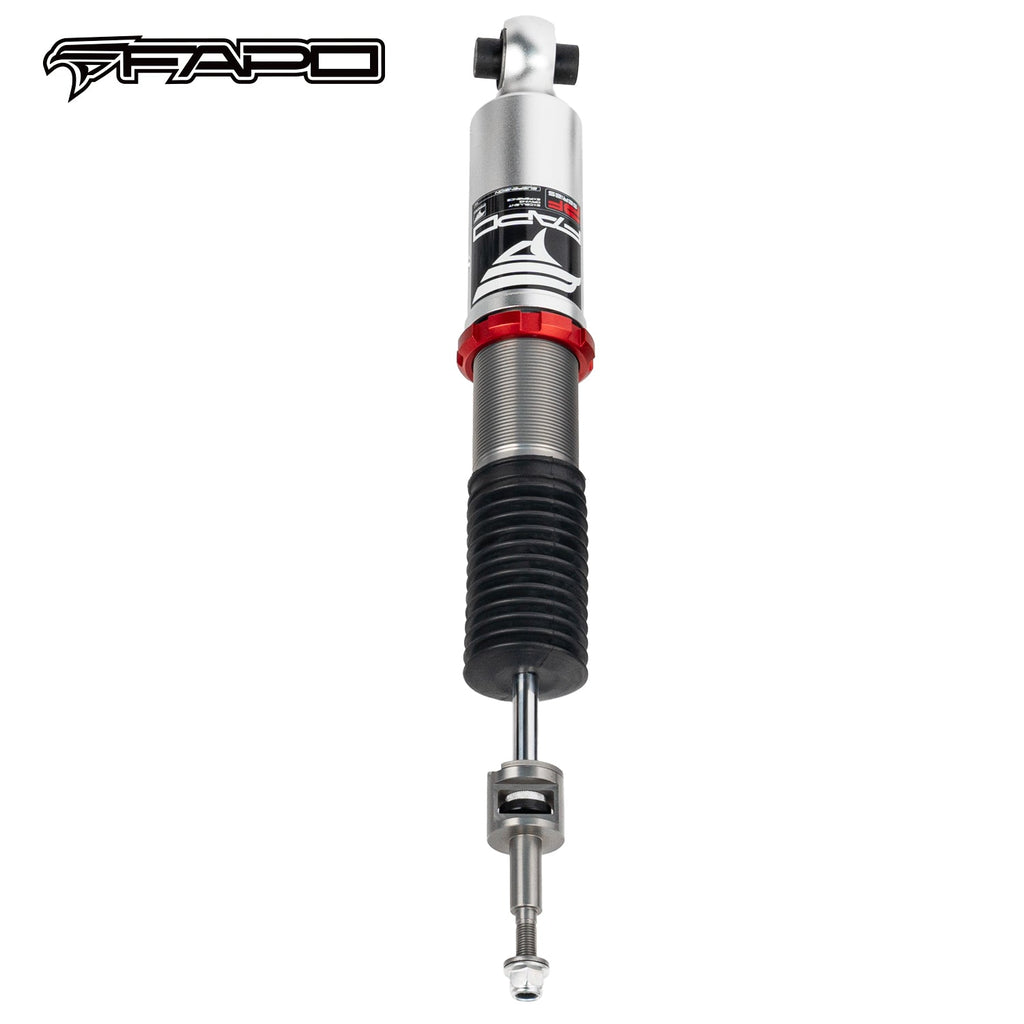

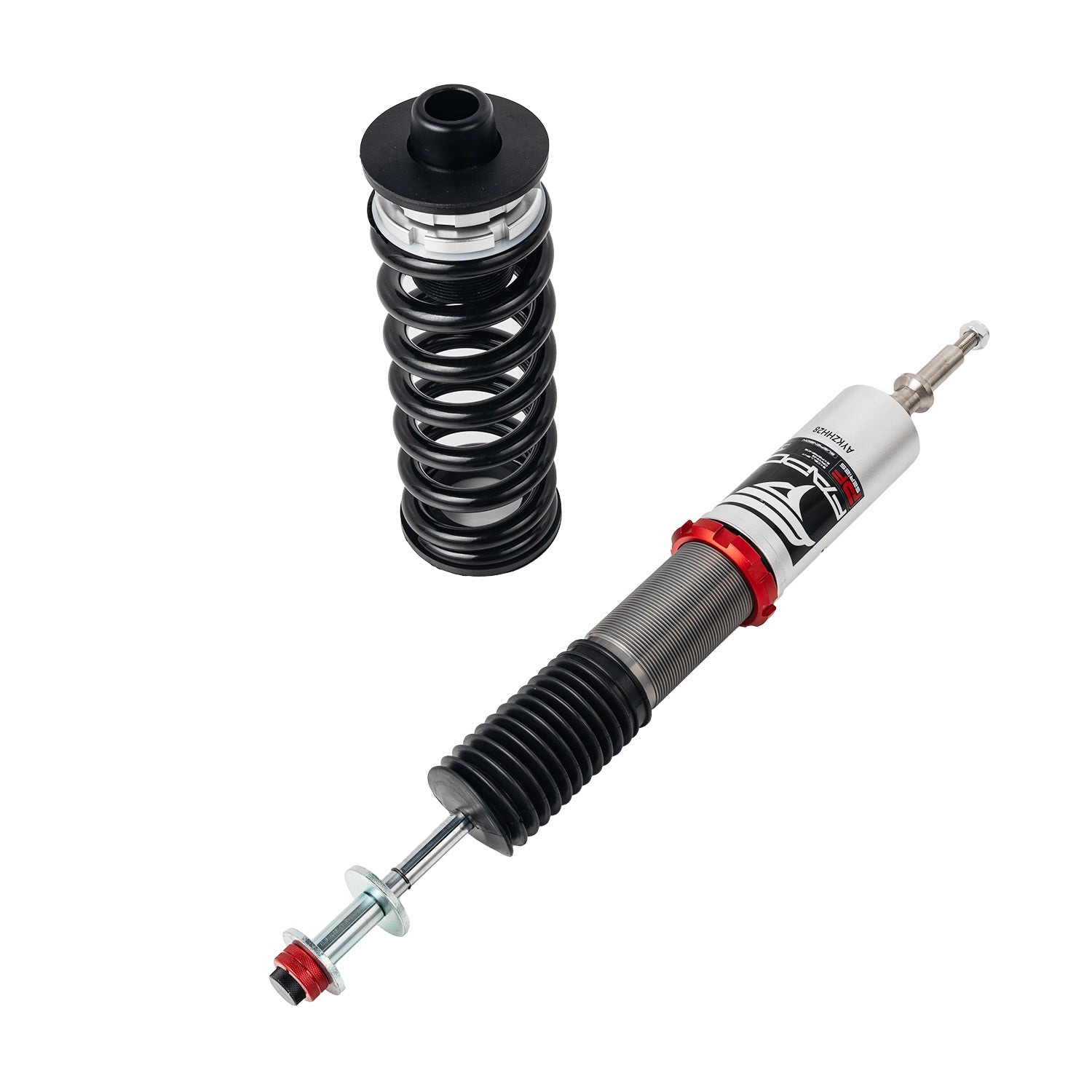

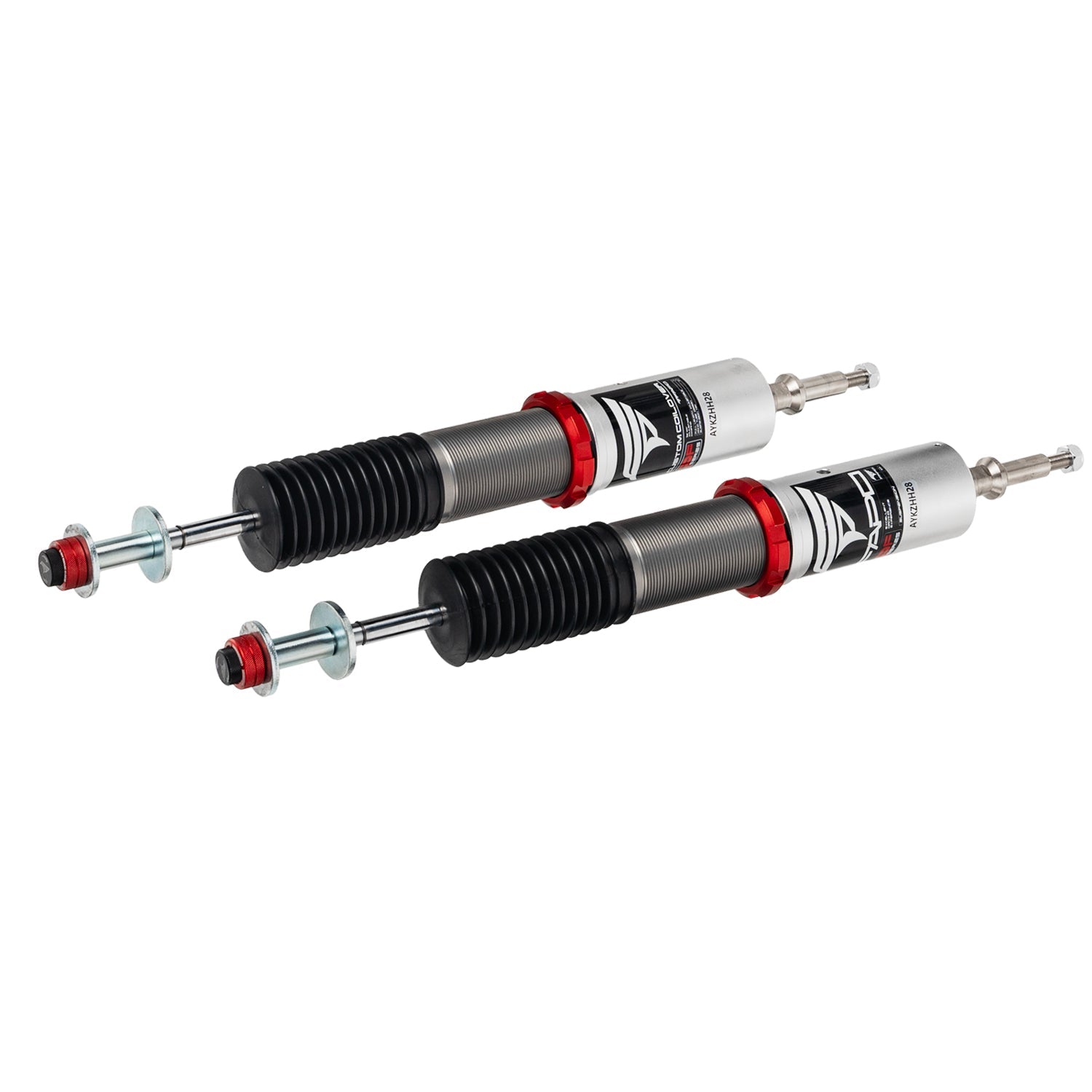

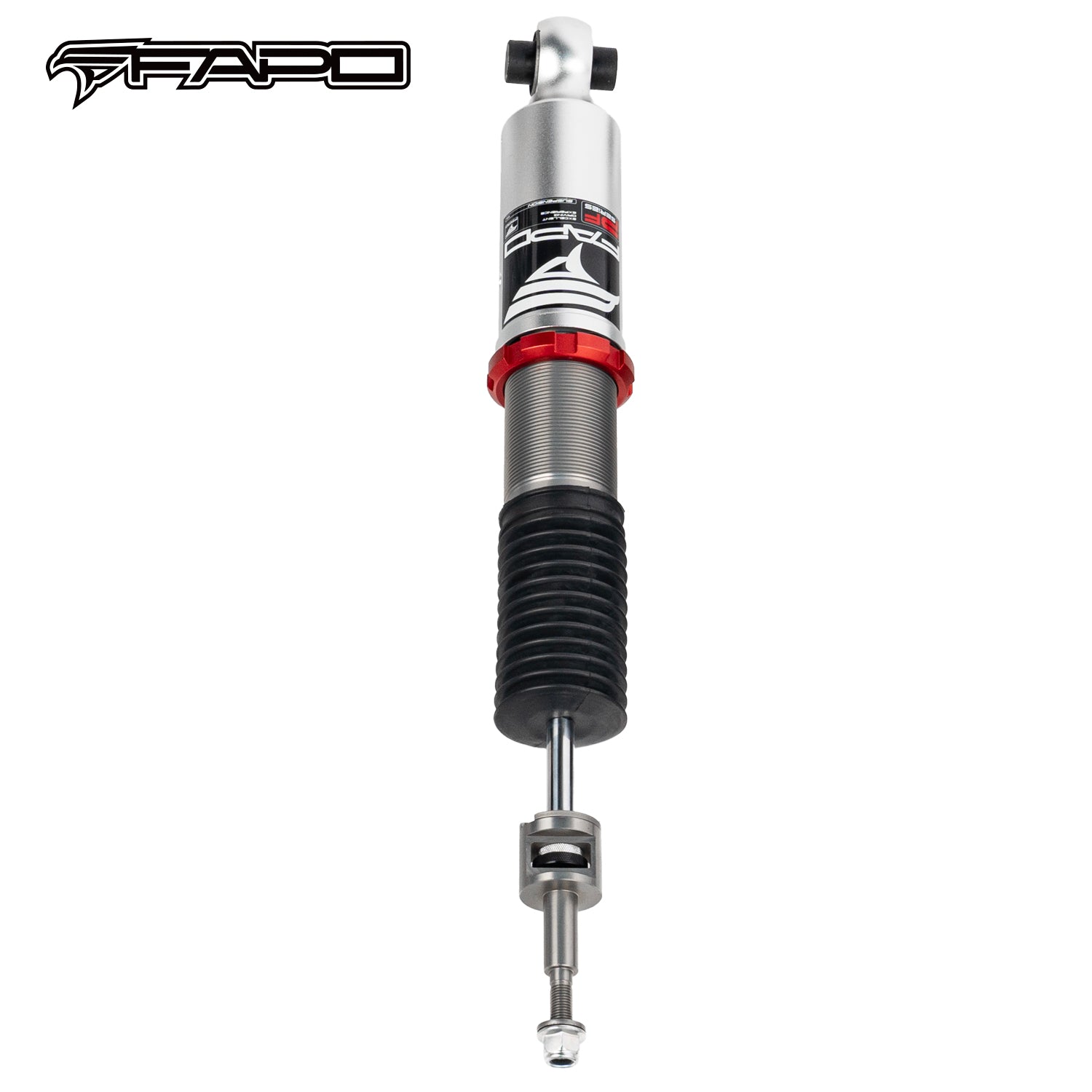

• Rear Shock: 53-240-140-12.5-M12 [4-A1-9]

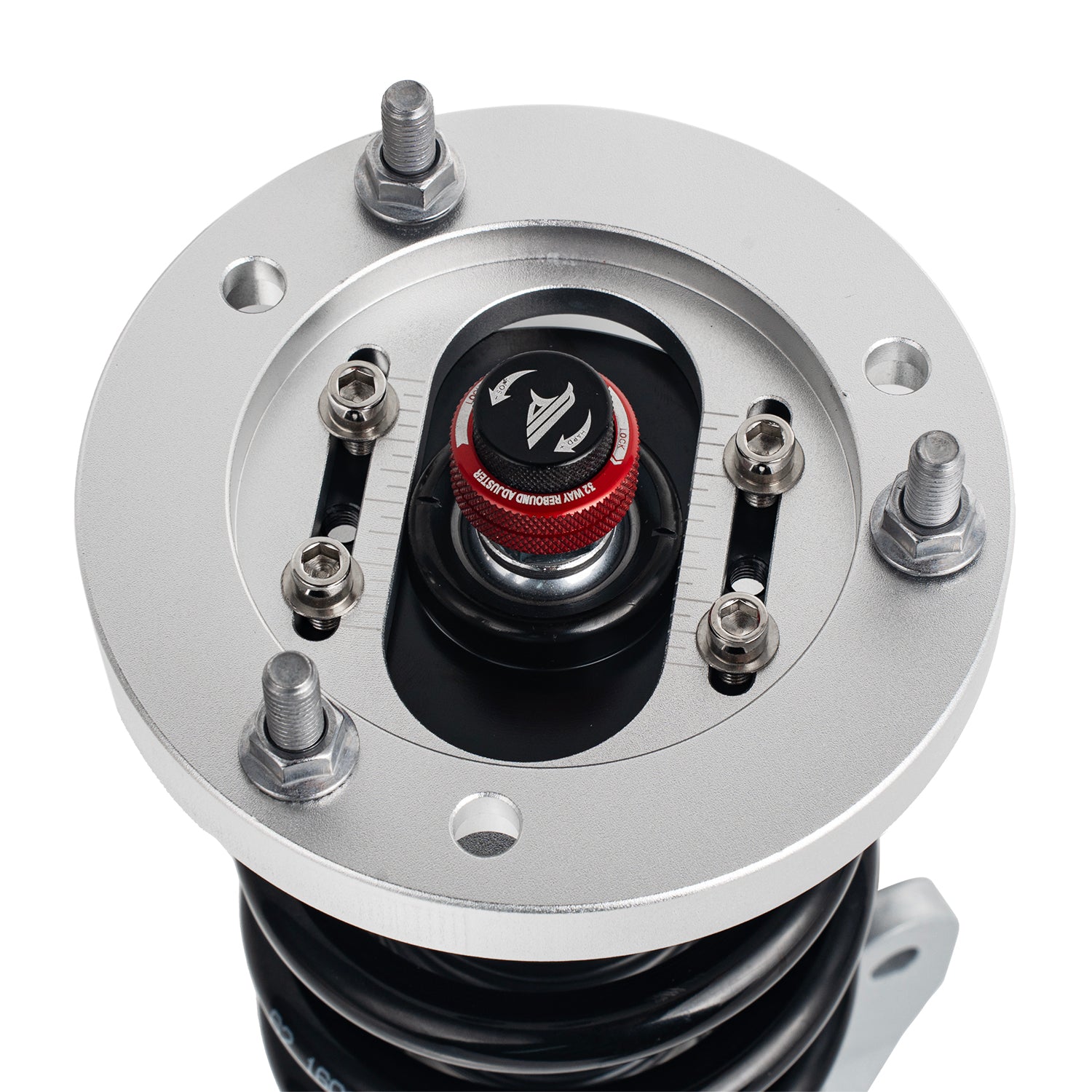

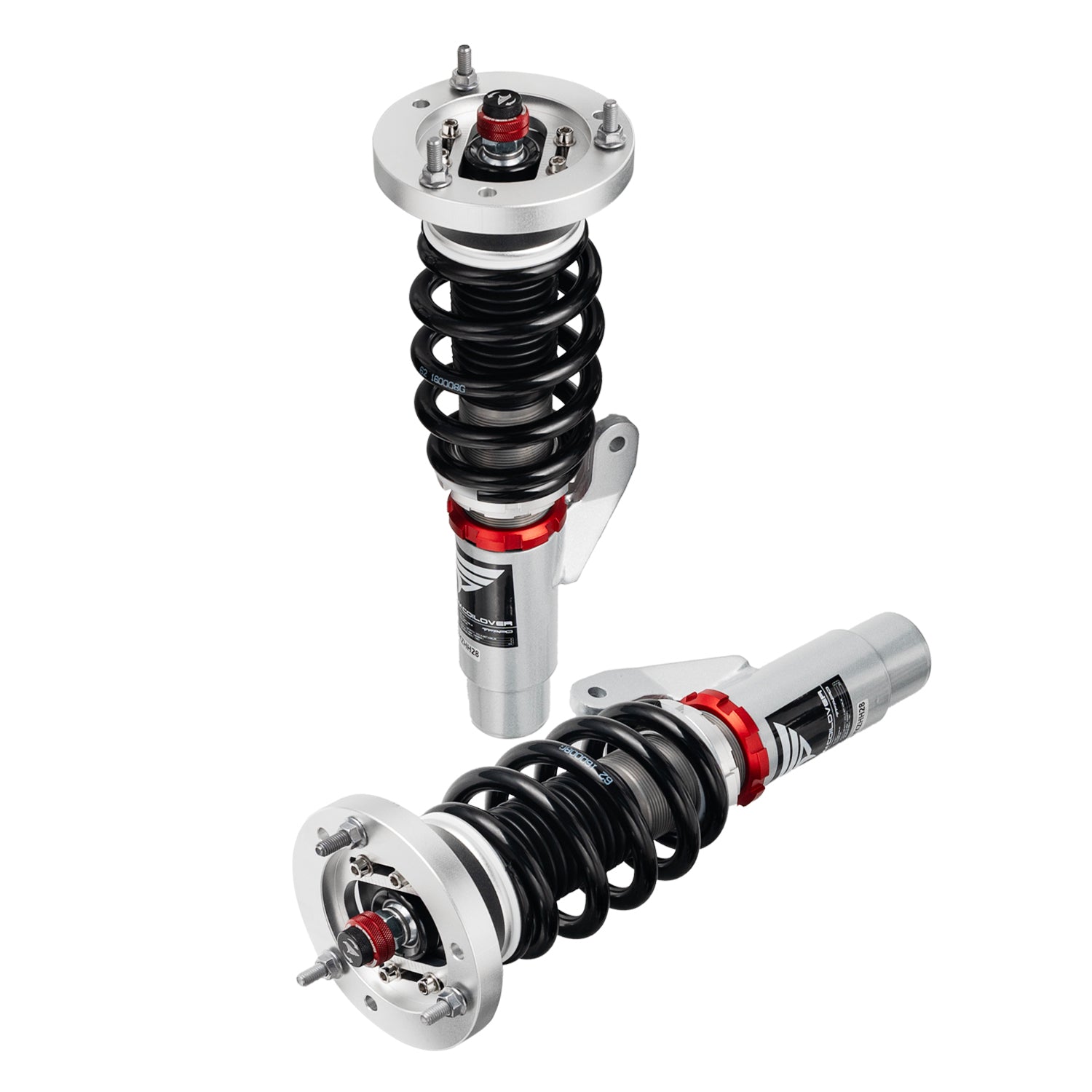

• Mounts: Front: Pillow Ball Camber Plate | Rear: OEM top mounts required
• Front Spring: 160mm, 8 kg/mm (445 lb/in)
• Rear Spring: 220mm, 12 kg/mm (670 lb/in)
• Ride Height: lowers 1-1.5 in from factory

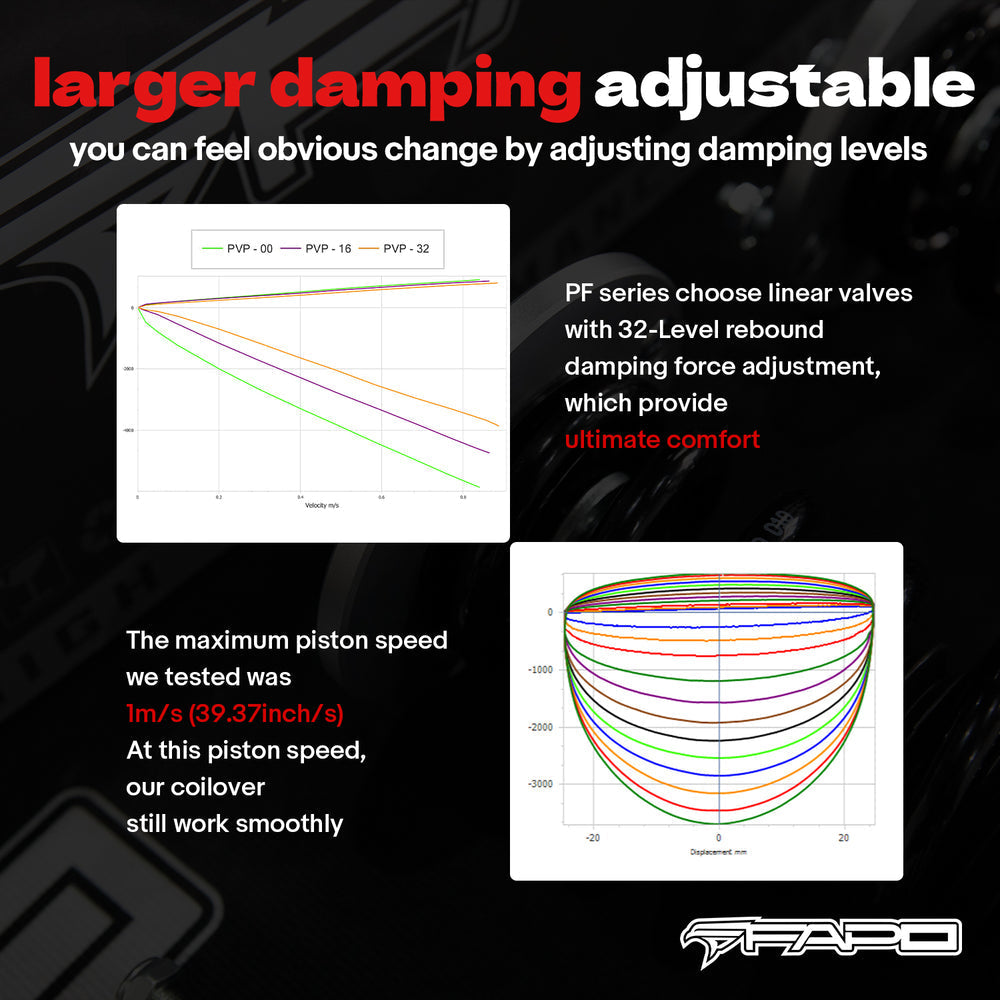

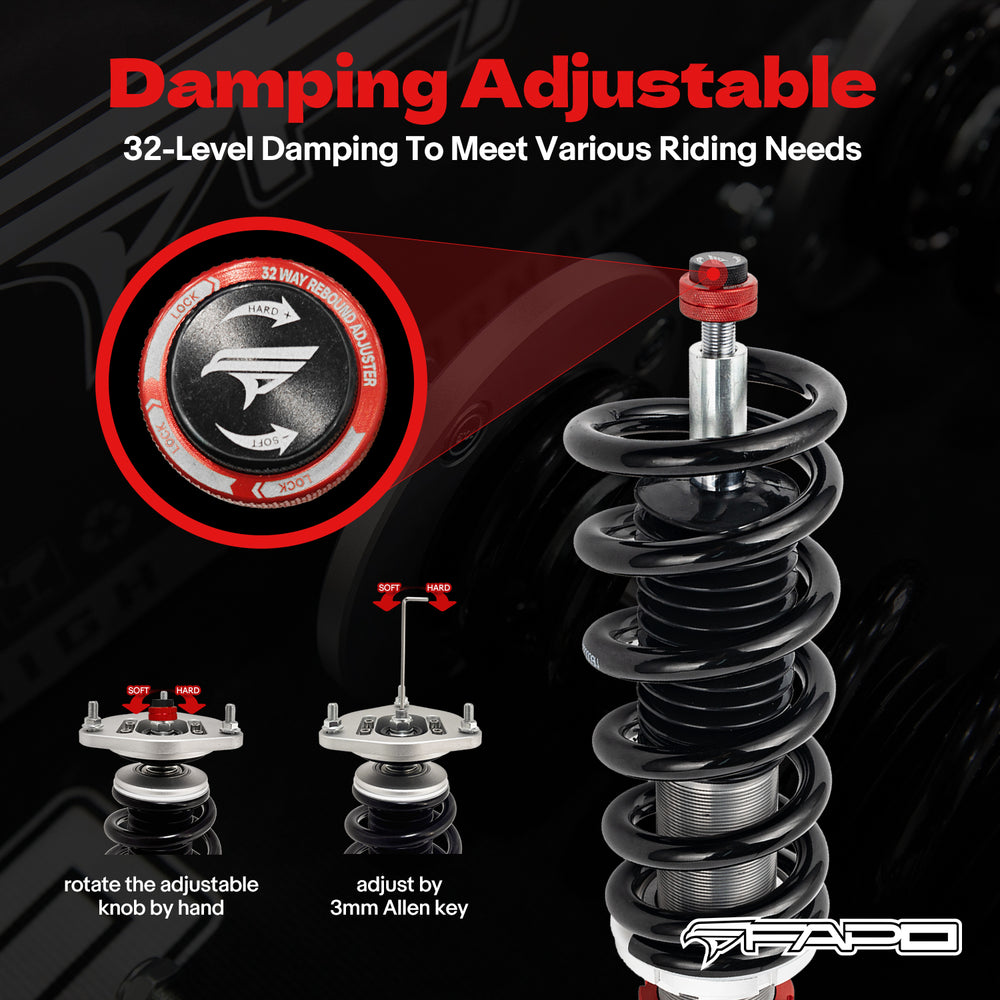

• Damping: 32 Levels

Shock code = tube dia - body length - travel - shaft dia - rod-end thread [valve], in mm.
